Features:

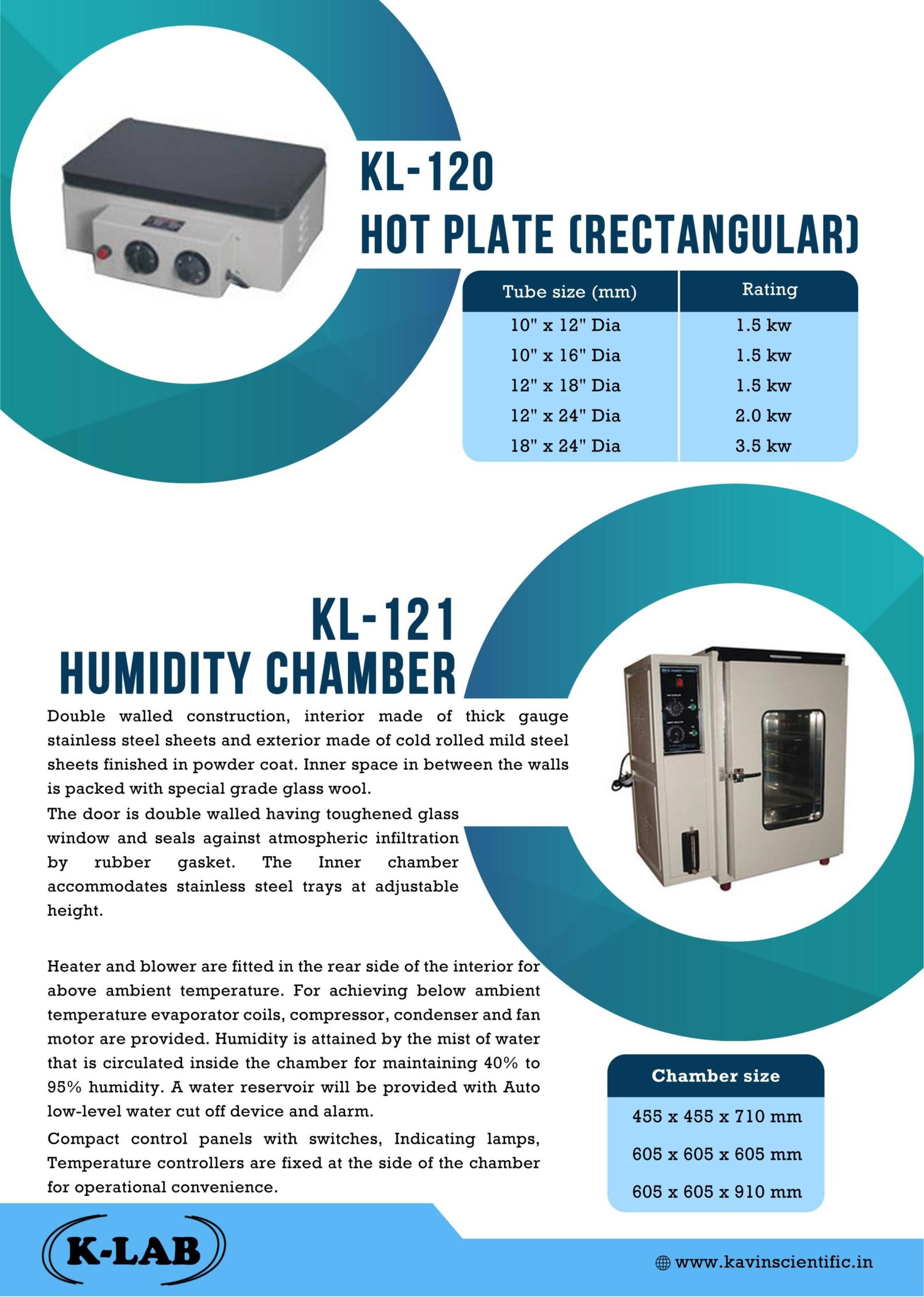

KL-120 - HOT PLATE (RECTANGULAR)

KL-121 - HUMIDITY CHAMBER

Double walled construction, interior made of thick gauge stainless steel sheets and exterior made of cold rolled mild steel sheets finished in powder coat. Inner space in between the walls is packed with special grade glass wool. The door is double walled having toughened glass window and seals against atmospheric infiltration by rubber gasket. The Inner chamber accommodates stainless steel trays at adjustable height.
Humidity is controlled by a humidistat humidity controller, having range 35% to 100% but humidity can be obtained from atmospheric humidity of 95% with sensitivity of ± 3%. Temperature controlled by digital temperature controller from ambient + 5°C to 60°C with an accuracy of ± 1°C.
Heater and blower are fitted in the rear side of the interior for above ambient temperature. For achieving below ambient temperature evaporator coils, compressor, condenser and fan motor are provided. Humidity is attained by the mist of water that is circulated inside the chamber for maintaining 40% to 95% humidity. A water reservoir will be provided with Auto low-level water cut off device and alarm.
Compact control panels with switches, Indicating lamps, Temperature controllers are fixed at the side of the chamber for operational convenience.

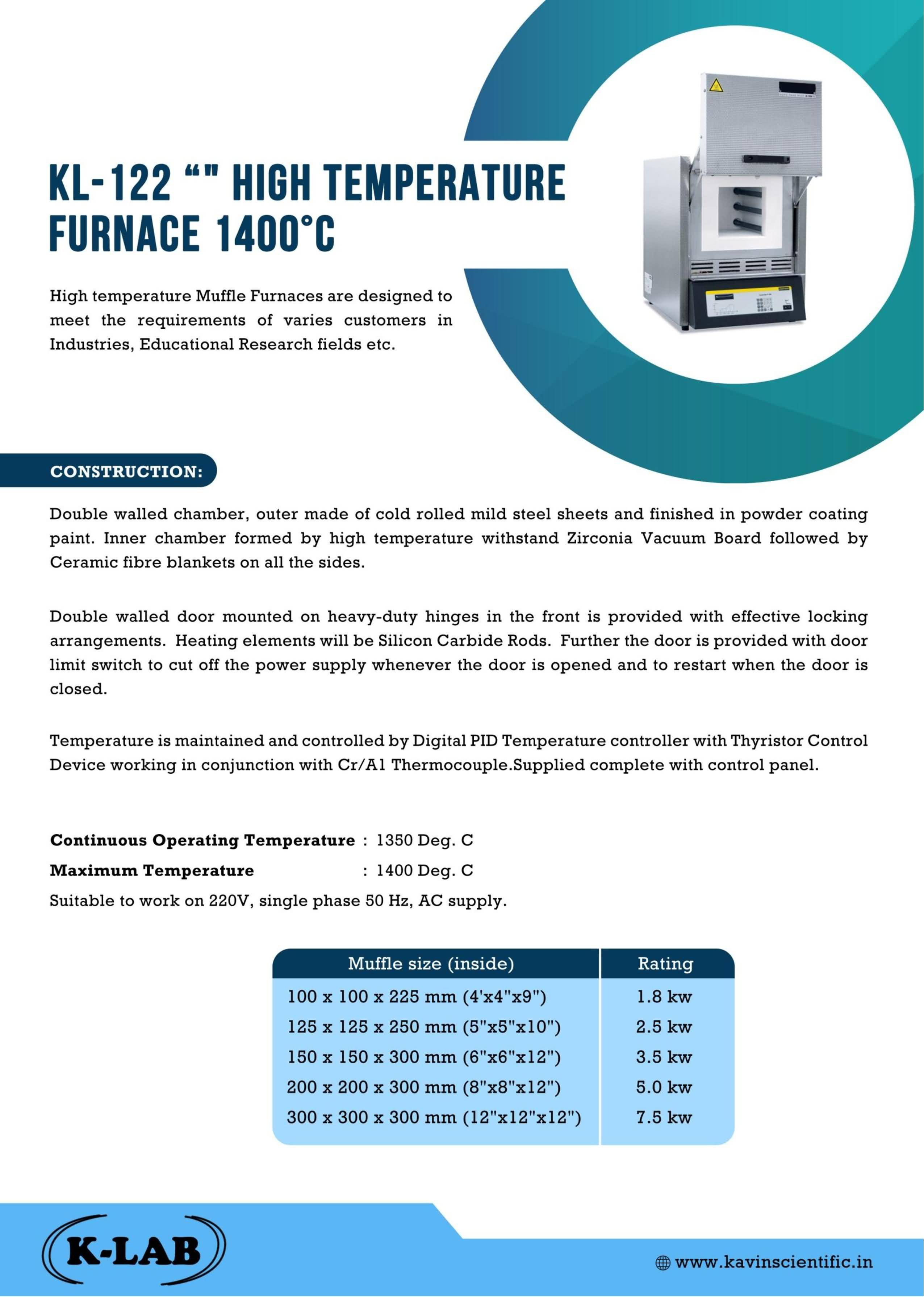

KL-122 “" HIGH TEMPERATURE FURNACE 1400°C

High temperature Muffle Furnaces are designed to meet the requirements of varies customers in Industries, Educational Research fields etc.
Construction: Double walled chamber, outer made of cold rolled mild steel sheets and finished in powder coating paint. Inner chamber formed by high temperature withstand Zirconia Vacuum Board followed by Ceramic fibre blankets on all the sides.
Double walled door mounted on heavy-duty hinges in the front is provided with effective locking arrangements. Heating elements will be Silicon Carbide Rods. Further the door is provided with door limit switch to cut off the power supply whenever the door is opened and to restart when the door is closed.
Temperature is maintained and controlled by Digital PID Temperature controller with Thyristor Control Device working in conjunction with Cr/A1 Thermocouple.Supplied complete with control panel.
Continuous Operating Temperature : 1350 Deg. C
Maximum Temperature : 1400 Deg. C
Suitable to work on 220V, single phase 50 Hz, AC supply.

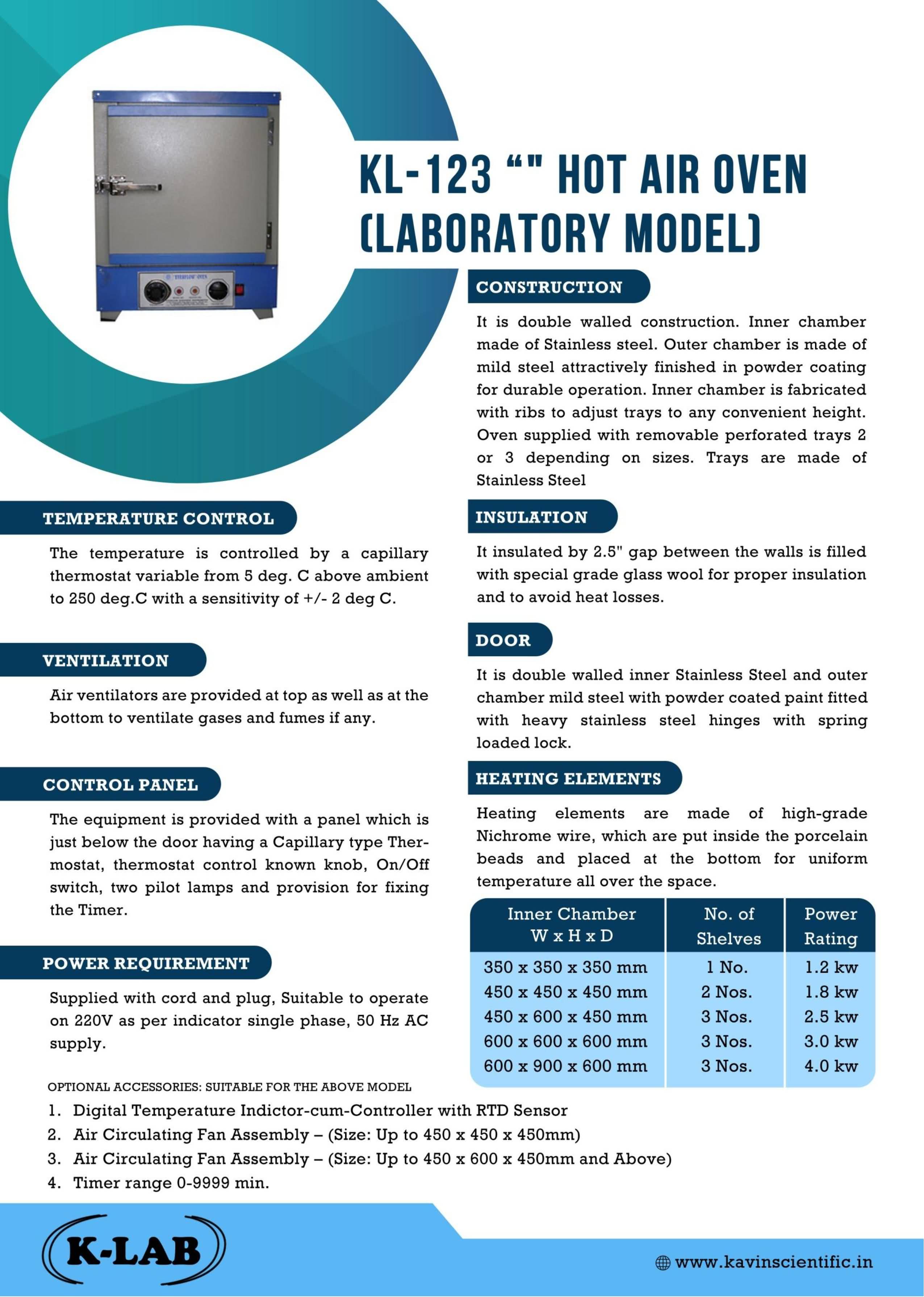

KL-123 “" HOT AIR OVEN (LABORATORY MODEL)

Construction: It is double walled construction. Inner chamber made of Stainless steel. Outer chamber is made of mild steel attractively finished in powder coating for durable operation. Inner chamber is fabricated with ribs to adjust trays to any convenient height. Oven supplied with removable perforated trays 2 or 3 depending on sizes. Trays are made of Stainless Steel
Insulation: It insulated by 2.5" gap between the walls is filled with special grade glass wool for proper insulation and to avoid heat losses.
Door: It is double walled inner Stainless Steel and outer chamber mild steel with powder coated paint fitted with heavy stainless steel hinges with spring loaded lock.
Heating Elements: Heating elements are made of high-grade Nichrome wire, which are put inside the porcelain beads and placed at the bottom for uniform temperature all over the space.
Temperature Control: The temperature is controlled by a capillary thermostat variable from 5 deg. C above ambient to 250 deg.C with a sensitivity of +/- 2 deg C.
Ventilation: Air ventilators are provided at top as well as at the bottom to ventilate gases and fumes if any.
Control Panel: The equipment is provided with a panel which is just below the door having a Capillary type Thermostat, thermostat control known knob, On/Off switch, two pilot lamps and provision for fixing the Timer.
Power Requirement: Supplied with cord and plug, Suitable to operate on 220V as per indicator single phase, 50 Hz AC supply.

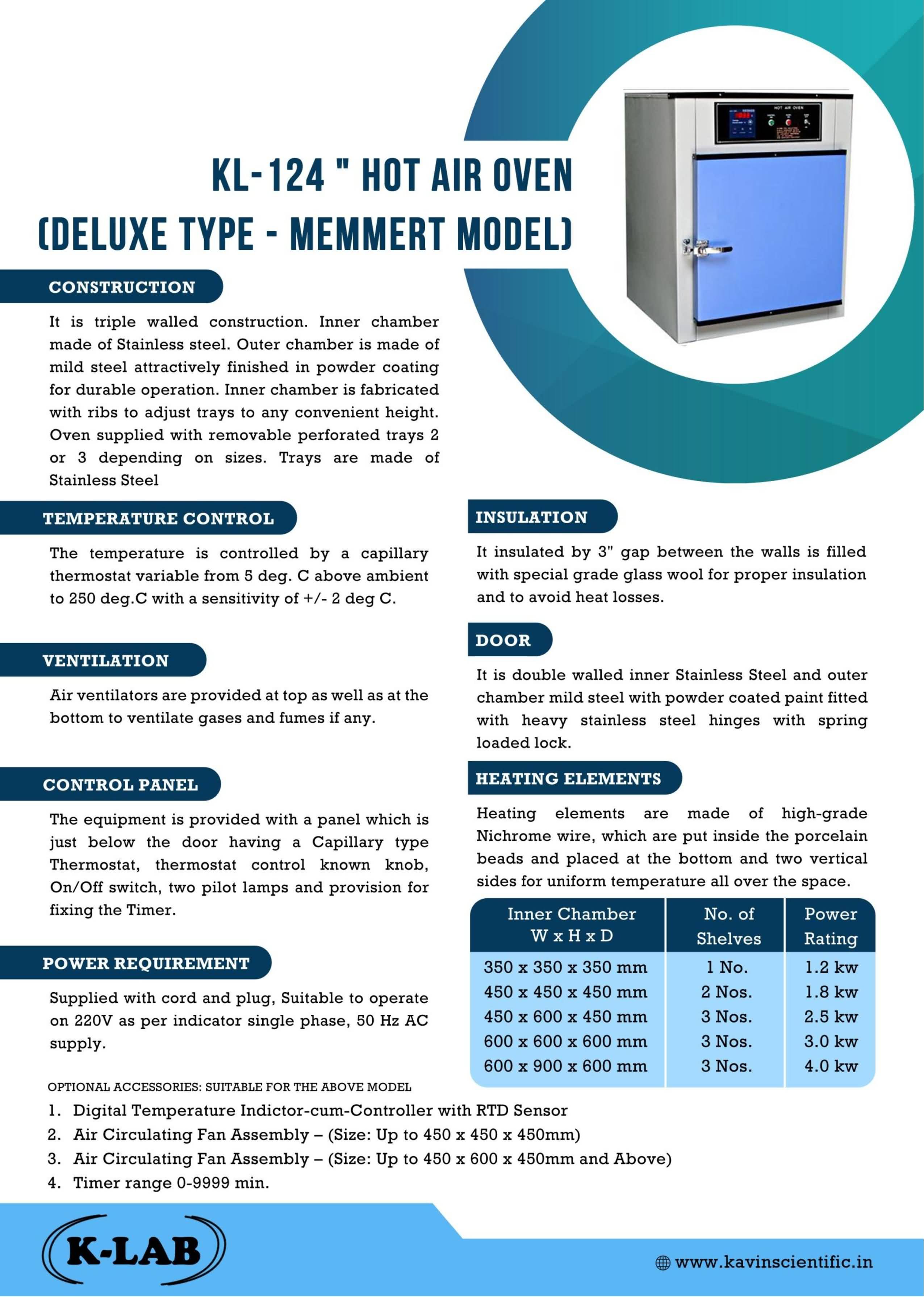

KL-124 " HOT AIR OVEN (DELUXE TYPE - MEMMERT MODEL)

Construction: It is triple walled construction. Inner chamber made of Stainless steel. Outer chamber is made of mild steel attractively finished in powder coating for durable operation. Inner chamber is fabricated with ribs to adjust trays to any convenient height. Oven supplied with removable perforated trays 2 or 3 depending on sizes. Trays are made of Stainless Steel
Insulation: It insulated by 3" gap between the walls is filled with special grade glass wool for proper insulation and to avoid heat losses.
Door: It is double walled inner Stainless Steel and outer chamber mild steel with powder coated paint fitted with heavy stainless steel hinges with spring loaded lock.
Heating Elements: Heating elements are made of high-grade Nichrome wire, which are put inside the porcelain beads and placed at the bottom and two vertical sides for uniform temperature all over the space.
Temperature Control: The temperature is controlled by a capillary thermostat variable from 5 deg. C above ambient to 250 deg.C with a sensitivity of +/- 2 deg C.
Ventilation: Air ventilators are provided at top as well as at the bottom to ventilate gases and fumes if any.
Control Panel: The equipment is provided with a panel which is just below the door having a Capillary type Thermostat, thermostat control known knob, On/Off switch, two pilot lamps and provision for fixing the Timer.
Power Requirement: Supplied with cord and plug, Suitable to operate on 220V as per indicator single phase, 50 Hz AC supply.

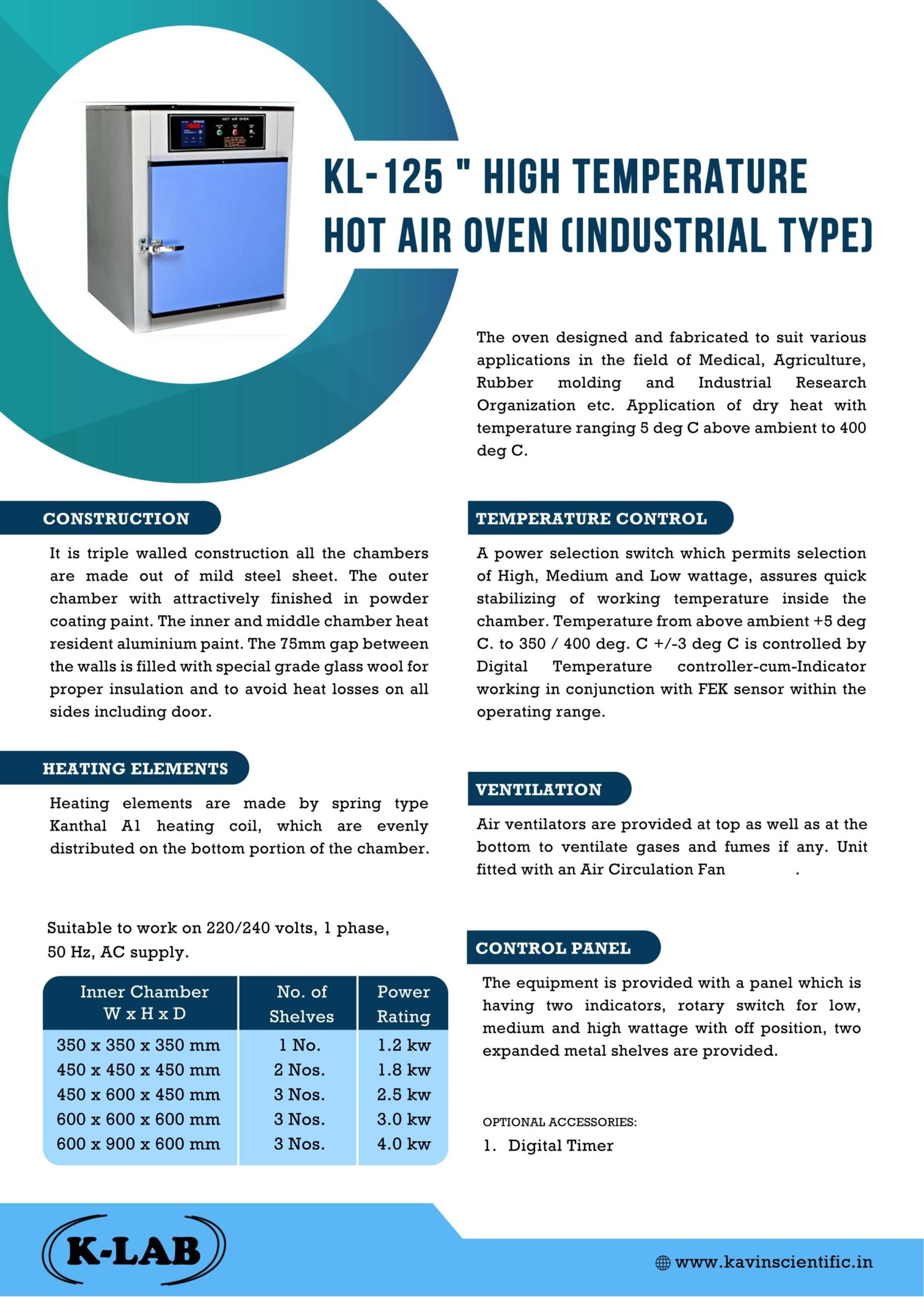

KL-125 " HIGH TEMPERATURE HOT AIR OVEN (INDUSTRIAL TYPE)

The oven designed and fabricated to suit various applications in the field of Medical, Agriculture, Rubber molding and Industrial Research Organization etc. Application of dry heat with temperature ranging 5 deg C above ambient to 400 deg C.
Construction: It is triple walled construction all the chambers are made out of mild steel sheet. The outer chamber with attractively finished in powder coating paint. The inner and middle chamber heat resident aluminium paint. The 75mm gap between the walls is filled with special grade glass wool for proper insulation and to avoid heat losses on all sides including door.
Heating Elements: Heating elements are made by spring type Kanthal A1 heating coil, which are evenly distributed on the bottom portion of the chamber.
Temperature Control: A power selection switch which permits selection of High, Medium and Low wattage, assures quick stabilizing of working temperature inside the chamber. Temperature from above ambient +5 deg C. to 350 / 400 deg. C +/-3 deg C is controlled by Digital Temperature controller-cum-Indicator working in conjunction with FEK sensor within the operating range.
Ventilation: Air ventilators are provided at top as well as at the bottom to ventilate gases and fumes if any. Unit fitted with an Air Circulation Fan .
Control Panel: The equipment is provided with a panel which is having two indicators, rotary switch for low, medium and high wattage with off position, two expanded metal shelves are provided.
Suitable to work on 220/240 volts, 1 phase, 50 Hz, AC supply.

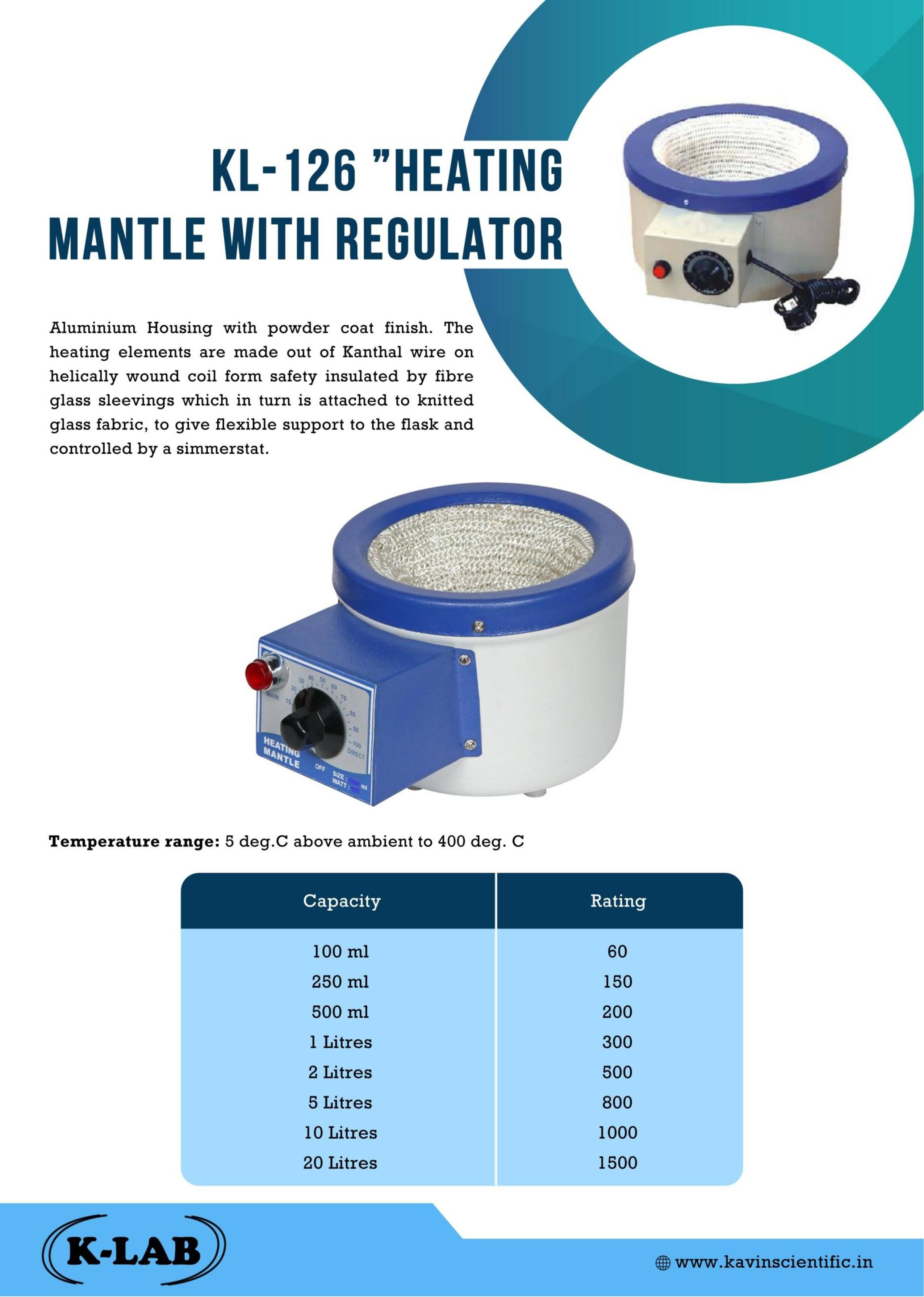

KL-126 ”HEATING MANTLE WITH REGULATOR:

Aluminium Housing with powder coat finish. The heating elements are made out of Kanthal wire on helically wound coil form safety insulated by fibre glass sleevings which in turn is attached to knitted glass fabric, to give flexible support to the flask and controlled by a simmerstat.
Temperature range: 5 deg.C above ambient to 400 deg. C

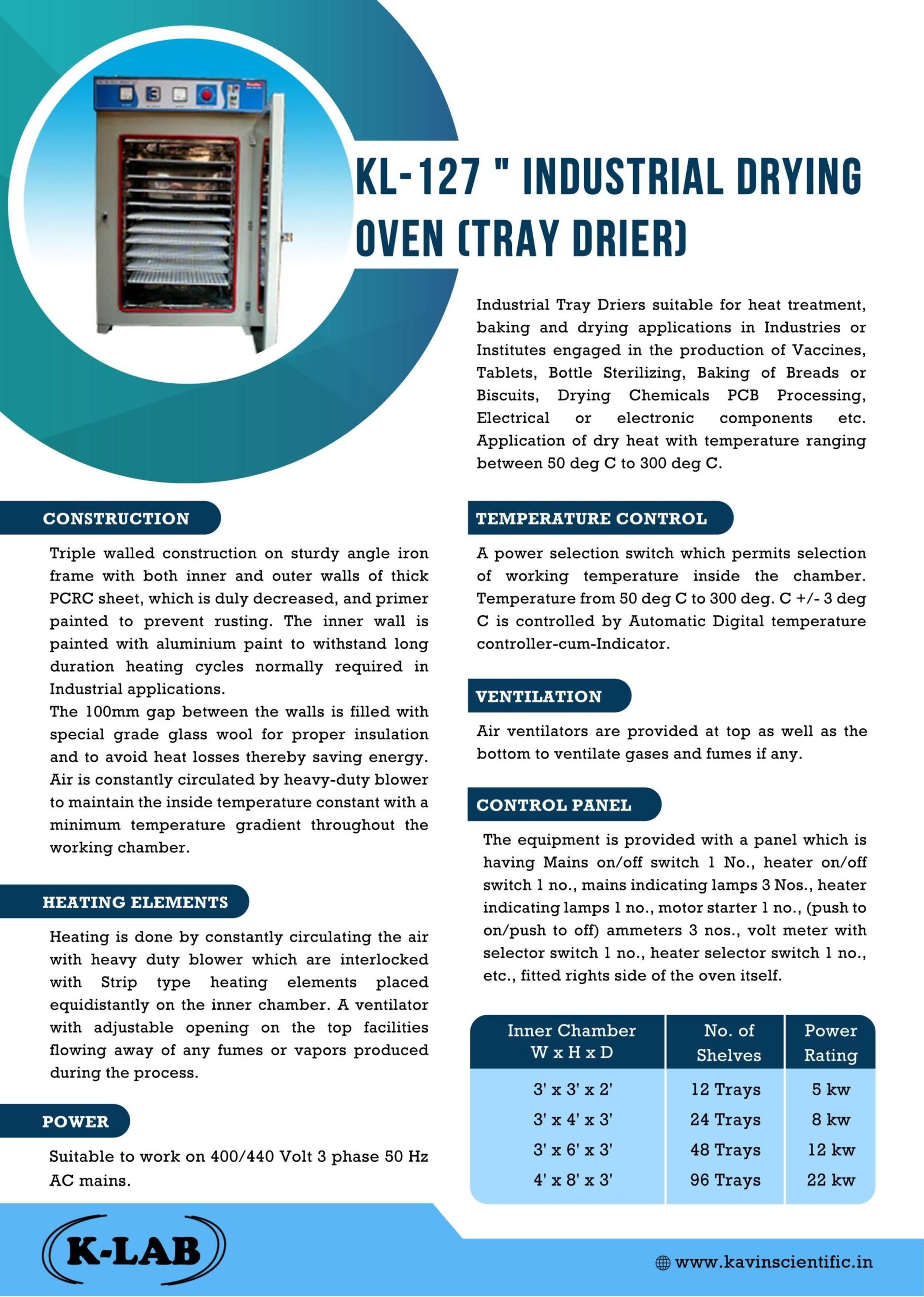

KL-127 " INDUSTRIAL DRYING OVEN (TRAY DRIER)

Industrial Tray Driers suitable for heat treatment, baking and drying applications in Industries or Institutes engaged in the production of Vaccines, Tablets, Bottle Sterilizing, Baking of Breads or Biscuits, Drying Chemicals PCB Processing, Electrical or electronic components etc. Application of dry heat with temperature ranging between 50 deg C to 300 deg C.
CONSTRUCTION: Triple walled construction on sturdy angle iron frame with both inner and outer walls of thick PCRC sheet, which is duly decreased, and primer painted to prevent rusting. The inner wall is painted with aluminium paint to withstand long duration heating cycles normally required in Industrial applications.
The 100mm gap between the walls is filled with special grade glass wool for proper insulation and to avoid heat losses thereby saving energy. Air is constantly circulated by heavy-duty blower to maintain the inside temperature constant with a minimum temperature gradient throughout the working chamber.
HEATING ELEMENT: Heating is done by constantly circulating the air with heavy duty blower which are interlocked with Strip type heating elements placed equidistantly on the inner chamber. A ventilator with adjustable opening on the top facilities flowing away of any fumes or vapors produced during the process.
TEMPERATURE CONTROL: A power selection switch which permits selection of working temperature inside the chamber. Temperature from 50 deg C to 300 deg. C +/- 3 deg C is controlled by Automatic Digital temperature controller-cum-Indicator.
VENTILATION: Air ventilators are provided at top as well as the bottom to ventilate gases and fumes if any.
CONTROL PANEL: The equipment is provided with a panel which is having Mains on/off switch 1 No., heater on/off switch 1 no., mains indicating lamps 3 Nos., heater indicating lamps 1 no., motor starter 1 no., (push to on/push to off) ammeters 3 nos., volt meter with selector switch 1 no., heater selector switch 1 no., etc., fitted rights side of the oven itself.
POWER: Suitable to work on 400/440 Volt 3 phase 50 Hz AC mains.

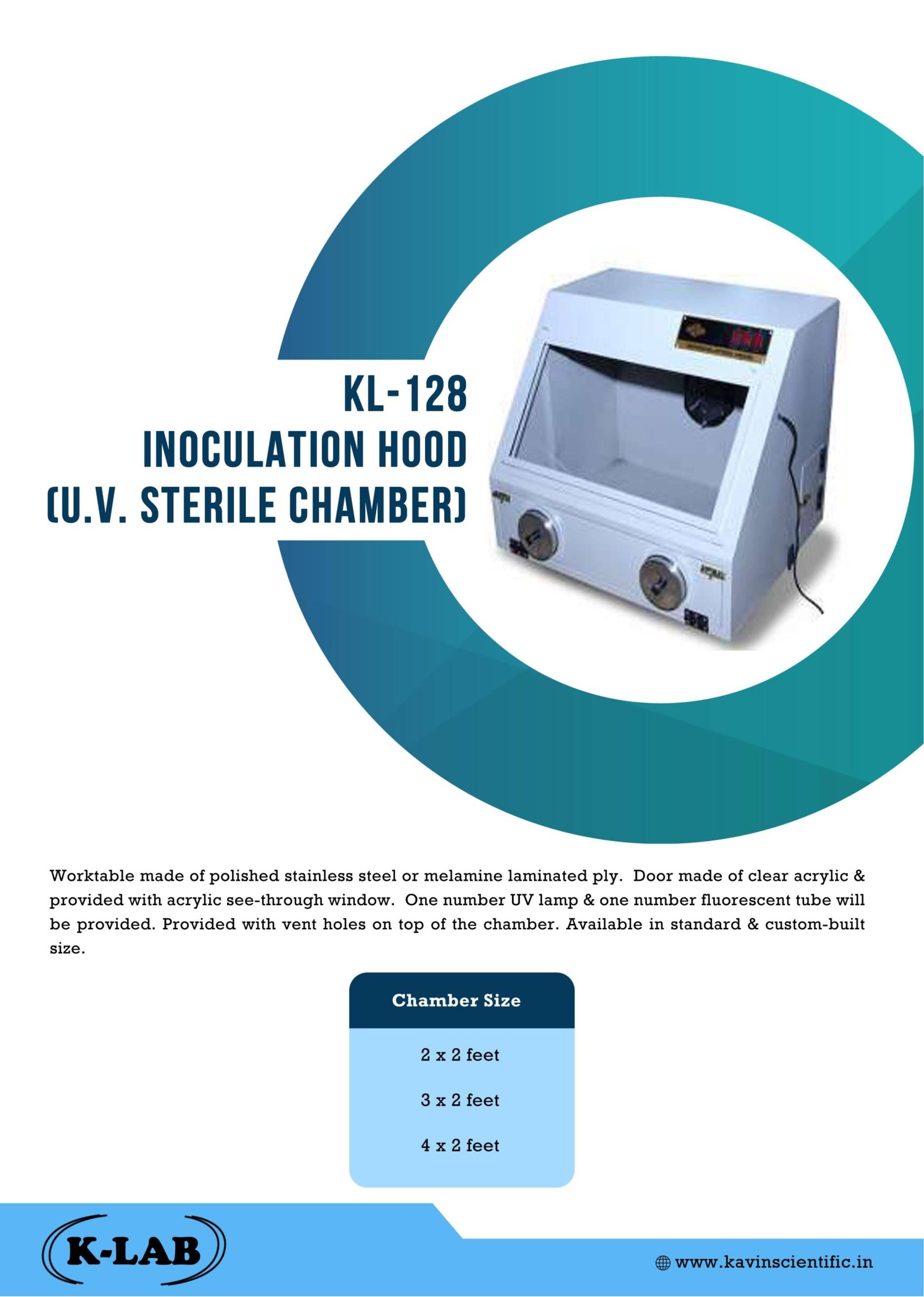

KL-128 INOCULATION HOOD (U.V. STERILE CHAMBER)

Worktable made of polished stainless steel or melamine laminated ply. Door made of clear acrylic & provided with acrylic see-through window. One number UV lamp & one number fluorescent tube will be provided. Provided with vent holes on top of the chamber. Available in standard & custom-built size.

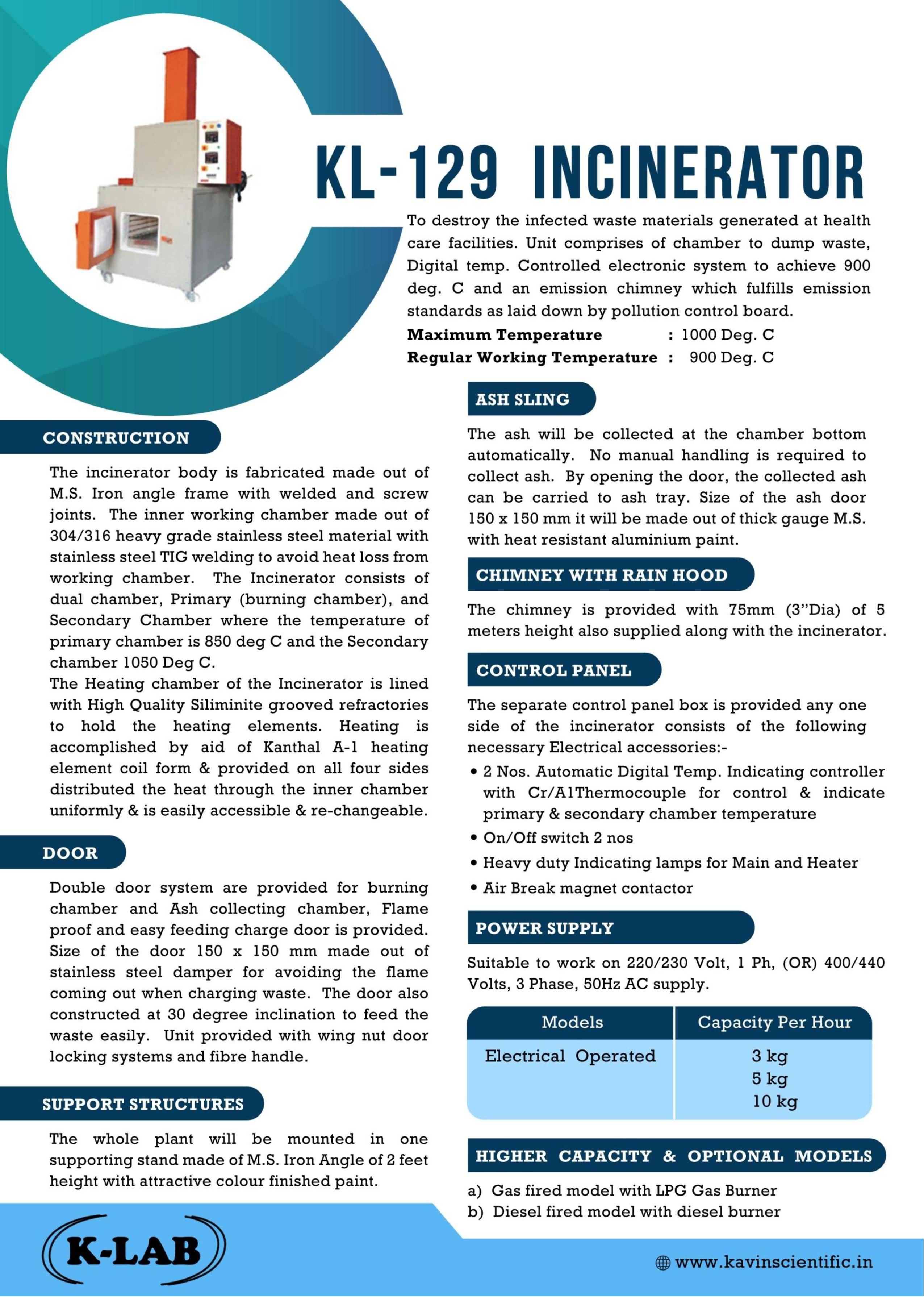

KL-129 INCINERATOR

To destroy the infected waste materials generated at health care facilities. Unit comprises of chamber to dump waste, Digital temp. Controlled electronic system to achieve 900 deg. C and an emission chimney which fulfills emission standards as laid down by pollution control board.
Maximum Temperature : 1000 Deg. C
Regular Working Temperature : 900 Deg. C
Construction: The incinerator body is fabricated made out of M.S. Iron angle frame with welded and screw joints. The inner working chamber made out of 304/316 heavy grade stainless steel material with stainless steel TIG welding to avoid heat loss from working chamber. The Incinerator consists of dual chamber, Primary (burning chamber), and Secondary Chamber where the temperature of primary chamber is 850 deg C and the Secondary chamber 1050 Deg C.
The Heating chamber of the Incinerator is lined with High Quality Siliminite grooved refractories to hold the heating elements. Heating is accomplished by aid of Kanthal A-1 heating element coil form and provided on all four sides distributed the heat through the inner chamber uniformly and is easily accessible and re-changeable.
Door: Double door system are provided for burning chamber and Ash collecting chamber, Flame proof and easy feeding charge door is provided. Size of the door 150 x 150 mm made out of stainless steel damper for avoiding the flame coming out when charging waste. The door also constructed at 30 degree inclination to feed the waste easily. Unit provided with wing nut door locking systems and fibre handle.
Ash Sling : The ash will be collected at the chamber bottom automatically. No manual handling is required to collect ash. By opening the door, the collected ash can be carried to ash tray. Size of the ash door 150 x 150 mm it will be made out of thick gauge M.S. with heat resistant aluminium paint.
Chimney with Rain Hood: The chimney is provided with 75mm (3” Dia) of 5 meters height also supplied along with the incinerator.
Control Panel: The separate control panel box is provided any one side of the incinerator consists of the following necessary Electrical accessories:-
2 Nos. Automatic Digital Temp. Indicating controller with Cr/A1 Thermocouple for control and indicate primary and secondary chamber temperature
On/Off switch 2 nos
Heavy duty Indicating lamps for Main and Heater
Air Break magnet contactor
Support Structures: The whole plant will be mounted in one supporting stand made of M.S. Iron Angle of 2 feet height with attractive colour finished paint.
Power Supply: Suitable to work on 220/230 Volt, 1 Ph, (OR) 400/440 Volts, 3 Phase, 50Hz AC supply.

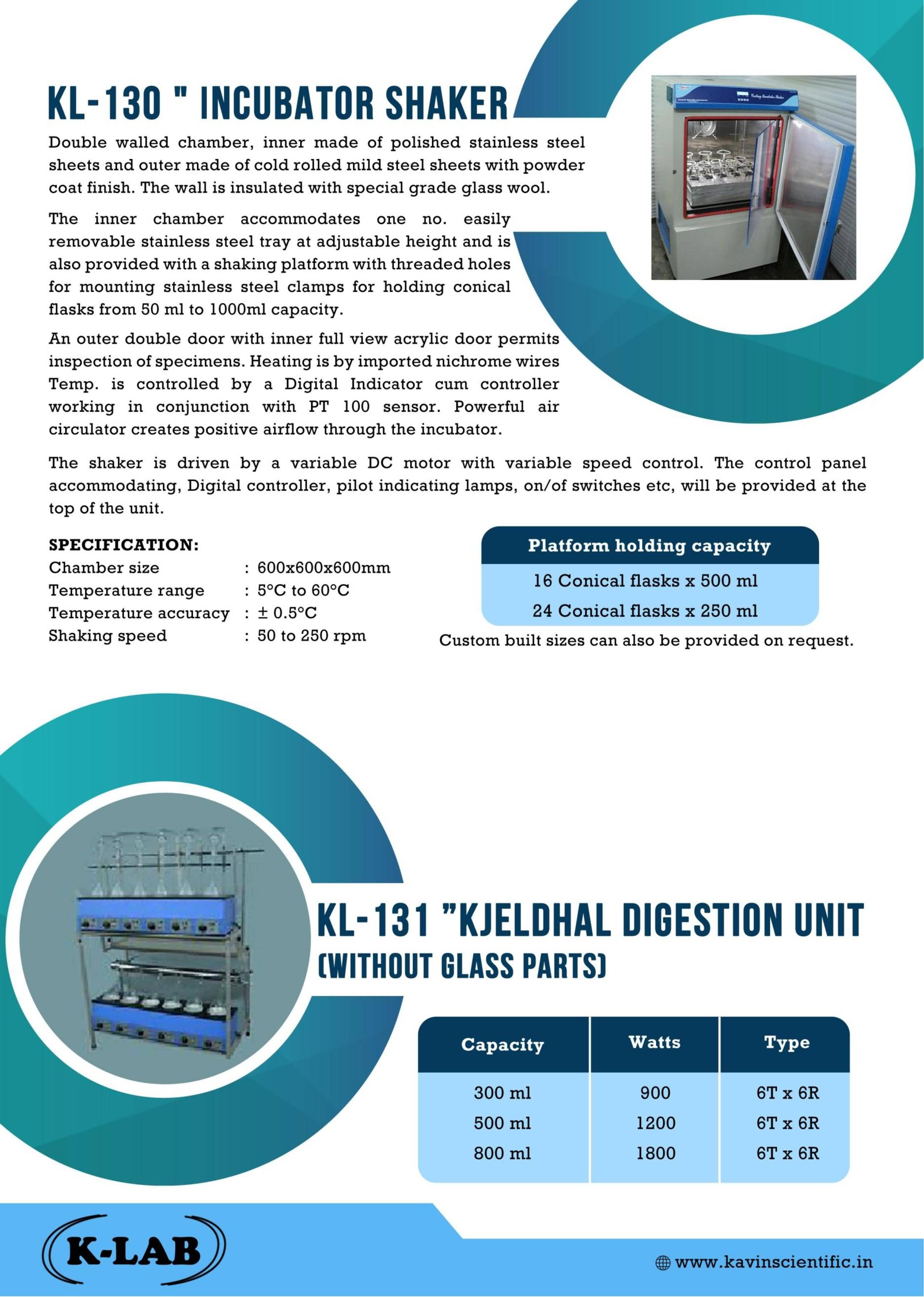

KL-130 " INCUBATOR SHAKER

Double walled chamber, inner made of polished stainless steel sheets and outer made of cold rolled mild steel sheets with powder coat finish. The wall is insulated with special grade glass wool.
The inner chamber accommodates one no. easily removable stainless steel tray at adjustable height and is also provided with a shaking platform with threaded holes for mounting stainless steel clamps for holding conical flasks from 50 ml to 1000ml capacity.
An outer double door with inner full view acrylic door permits inspection of specimens. Heating is by imported nichrome wires Temp. is controlled by a Digital Indicator cum controller working in conjunction with PT 100 sensor. Powerful air circulator creates positive airflow through the incubator.
The shaker is driven by a variable DC motor with variable speed control. The control panel accommodating, Digital controller, pilot indicating lamps, on/of switches etc, will be provided at the top of the unit.

KL-131 ”KJELDHAL DIGESTION UNIT (Without Glass Parts)

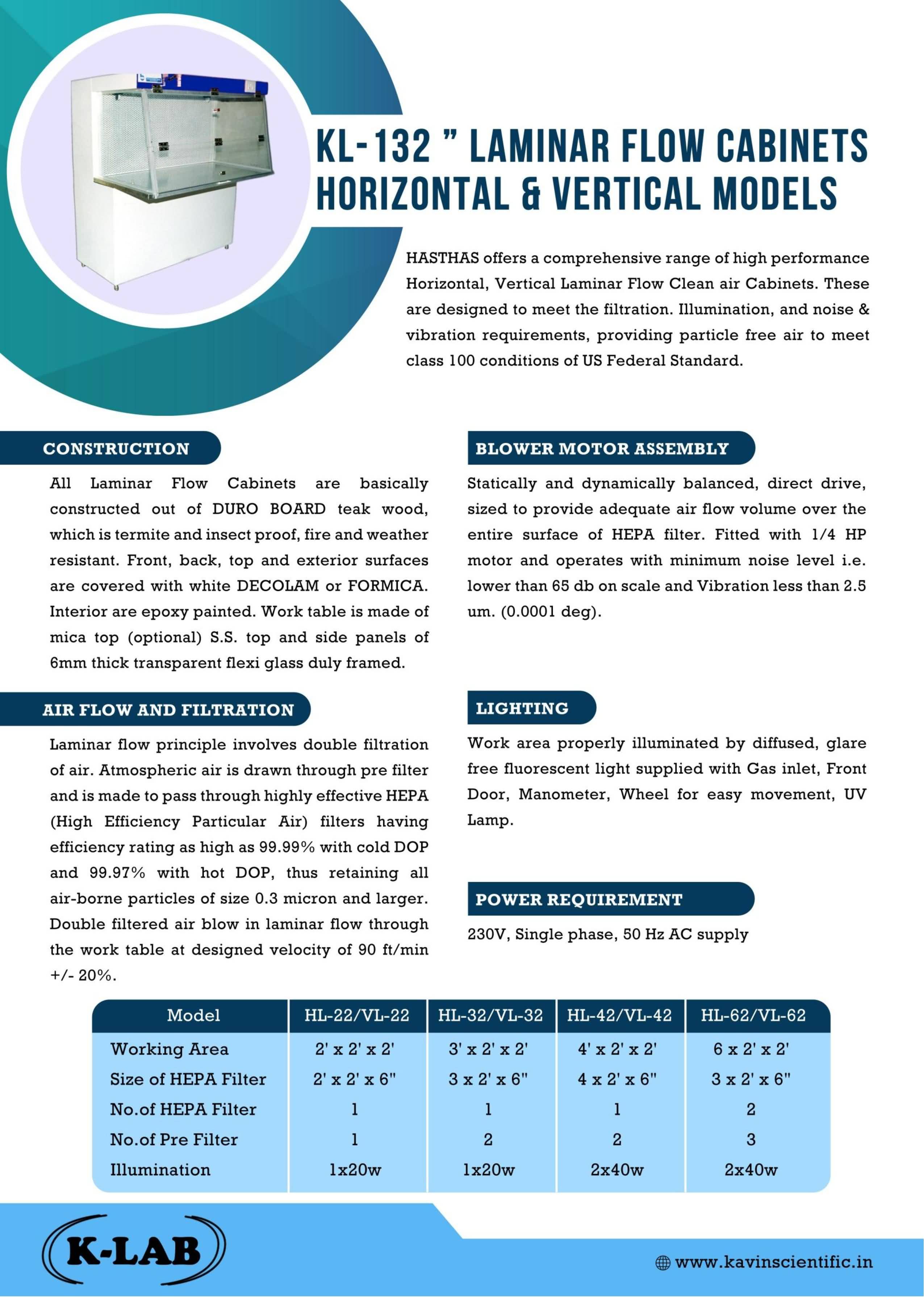

KL-132 ” LAMINAR FLOW CABINETS HORIZONTAL & VERTICAL MODELS

K-LAB offers a comprehensive range of high performance Horizontal, Vertical Laminar Flow Clean air Cabinets. These are designed to meet the filtration. Illumination, and noise & vibration requirements, providing particle free air to meet class 100 conditions of US Federal Standard.
CONSTRUCTION: All Laminar Flow Cabinets are basically constructed out of DURO BOARD teak wood, which is termite and insect proof, fire and weather resistant. Front, back, top and exterior surfaces are covered with white DECOLAM or FORMICA. Interior are epoxy painted. Work table is made of mica top (optional) S.S. top and side panels of 6mm thick transparent flexi glass duly framed.
AIR FLOW AND FILTRATION: Laminar flow principle involves double filtration of air. Atmospheric air is drawn through pre filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-borne particles of size 0.3 micron and larger. Double filtered air blow in laminar flow through the work table at designed velocity of 90 ft/min +/- 20%.

LIGHTING: Work area properly illuminated by diffused, glare free fluorescent light supplied with Gas inlet, Front Door, Manometer, Wheel for easy movement, UV Lamp.
POWER REQUIREMENT: 230V, Single phase, 50 Hz AC supply
Size: Horizontal & Vertical

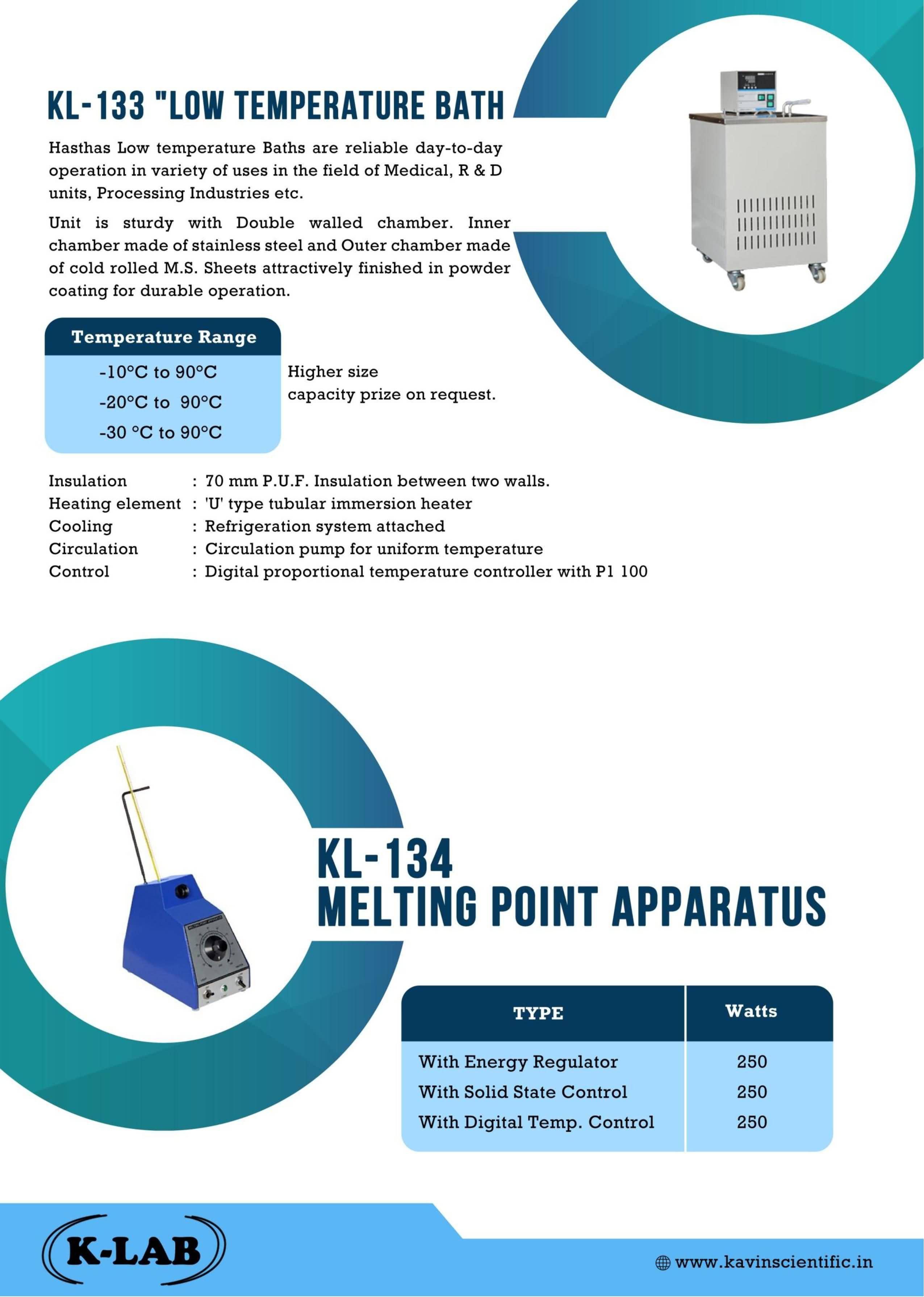

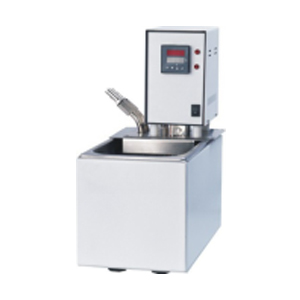

KL-133 " LOW TEMPERATURE BATH

K-LAB Low temperature Baths are reliable day-to-day operation in variety of uses in the field of Medical, R & D units, Processing Industries etc.
CONSTRUCTION: Unit is sturdy with Double walled chamber. Inner chamber made of stainless steel and Outer chamber made of cold rolled M.S. Sheets attractively finished in powder coating for durable operation.
Insulation : 70 mm P.U.F. Insulation between two walls.
Heating element : 'U' type tubular immersion heater
Cooling : Refrigeration system attached
Circulation : Circulation pump for uniform temperature
Control : Digital proportional temperature controller with P1 100 Sensor.
Power Supply : 240 volts 1 Phaze, 50 Hz AC supply

KL-134 MELTING POINT APPARATUS

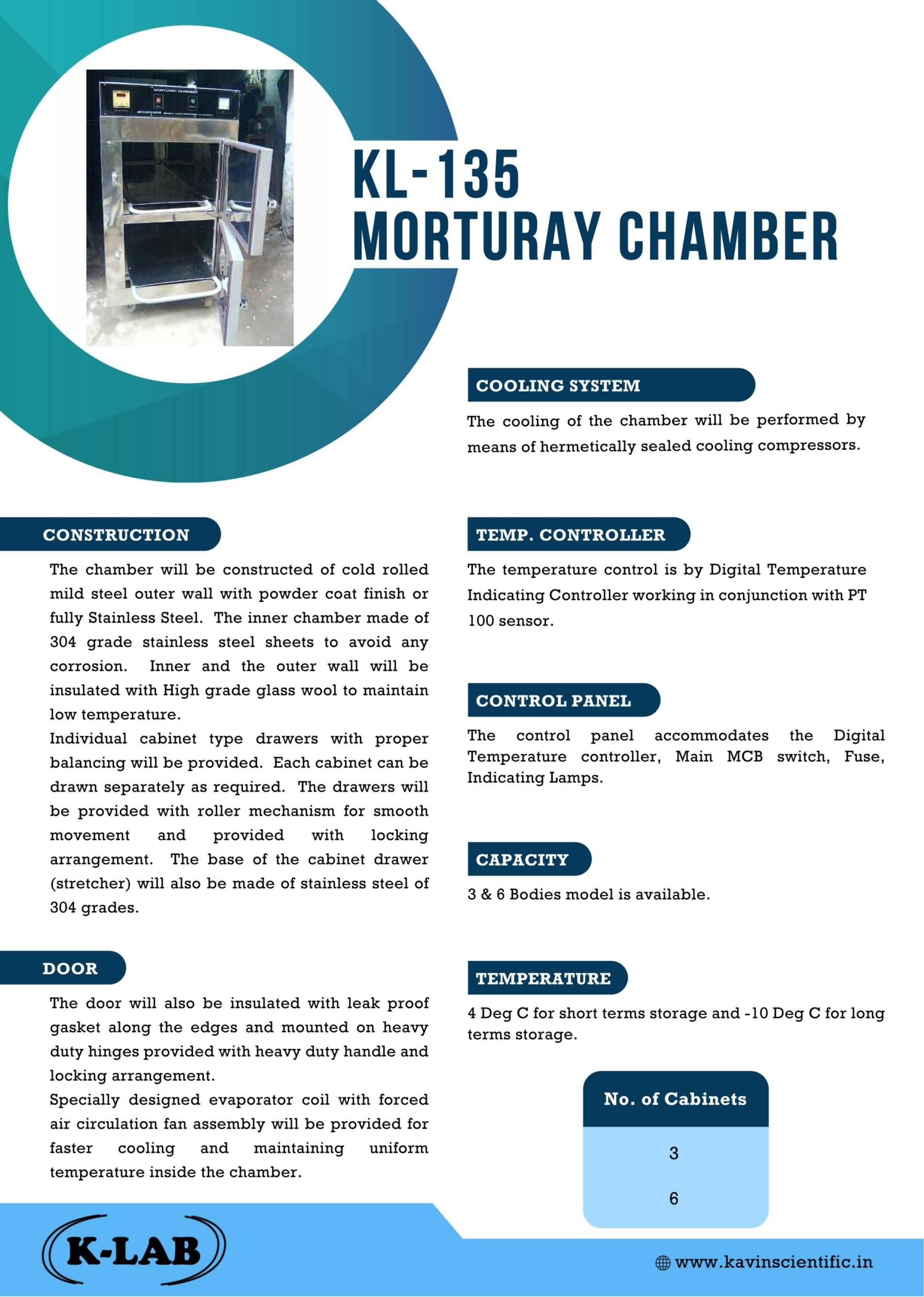

KL-135 MORTURAY CHAMBER

Construction: The chamber will be constructed of cold rolled mild steel outer wall with powder coat finish or fully Stainless Steel. The inner chamber made of 304 grade stainless steel sheets to avoid any corrosion. Inner and the outer wall will be insulated with High grade glass wool to maintain low temperature.
Individual cabinet type drawers with proper balancing will be provided. Each cabinet can be drawn separately as required. The drawers will be provided with roller mechanism for smooth movement and provided with locking arrangement. The base of the cabinet drawer (stretcher) will also be made of stainless steel of 304 grades.
Door: The door will also be insulated with leak proof gasket along the edges and mounted on heavy duty hinges provided with heavy duty handle and locking arrangement.
Specially designed evaporator coil with forced air circulation fan assembly will be provided for faster cooling and maintaining uniform temperature inside the chamber.
Cooling System: The cooling of the chamber will be performed by means of hermetically sealed cooling compressors.
Temp. Controller: The temperature control is by Digital Temperature Indicating Controller working in conjunction with PT 100 sensor.
Control Panel: The control panel accommodates the Digital Temperature controller, Main MCB switch, Fuse, Indicating Lamps.
Capacity: 3 & 6 Bodies model is available.
Temperature: 4 Deg C for short terms storage and -10 Deg C for long terms storage.

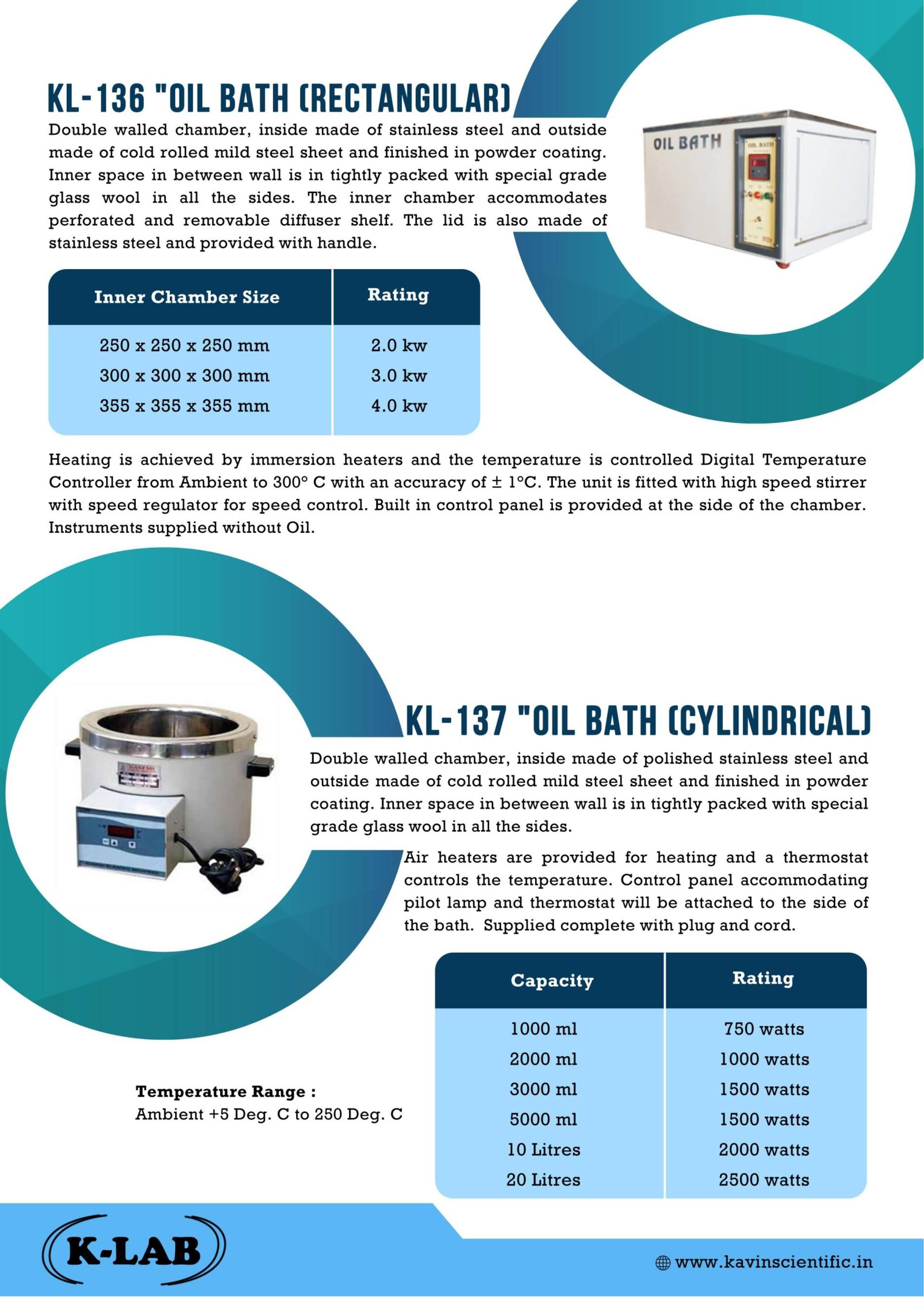

KL-136 " OIL BATH (RECTANGULAR)

Double walled chamber, inside made of stainless steel and outside made of cold rolled mild steel sheet and finished in powder coating. Inner space in between wall is in tightly packed with special grade glass wool in all the sides. The inner chamber accommodates perforated and removable diffuser shelf. The lid is also made of stainless steel and provided with handle.
Heating is achieved by immersion heaters and the temperature is controlled Digital Temperature Controller from Ambient to 300° C with an accuracy of ± 1°C. The unit is fitted with high speed stirrer with speed regulator for speed control. Built in control panel is provided at the side of the chamber. Instruments supplied without Oil.

KL-137 " OIL BATH (CYLINDRICAL)

Double walled chamber, inside made of polished stainless steel and outside made of cold rolled mild steel sheet and finished in powder coating. Inner space in between wall is in tightly packed with special grade glass wool in all the sides.
Air heaters are provided for heating and a thermostat controls the temperature. Control panel accommodating pilot lamp and thermostat will be attached to the side of the bath. Supplied complete with plug and cord.
Temperature Range : Ambient +5 Deg. C to 250 Deg. C

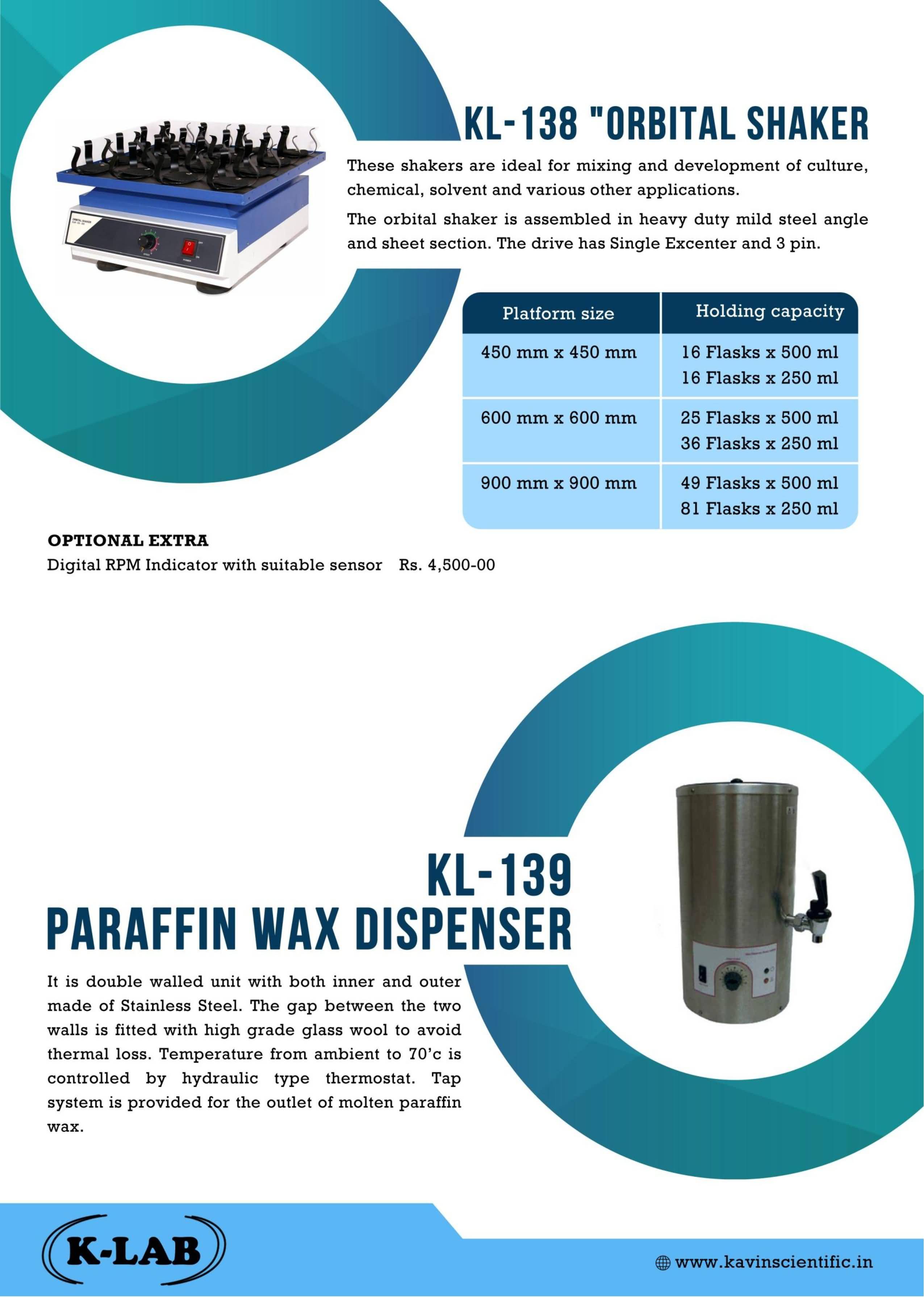

KL-138 " ORBITAL SHAKER

These shakers are ideal for mixing and development of culture, chemical, solvent and various other applications.
The orbital shaker is assembled in heavy duty mild steel angle and sheet section. The drive has Single Excenter and 3 pin.

KL-139 PARAFFIN WAX DISPENSER

It is double walled unit with both inner and outer made of Stainless Steel. The gap between the two walls is fitted with high grade glass wool to avoid thermal loss. Temperature from ambient to 70’c is controlled by hydraulic type thermostat. Tap system is provided for the outlet of molten paraffin wax.

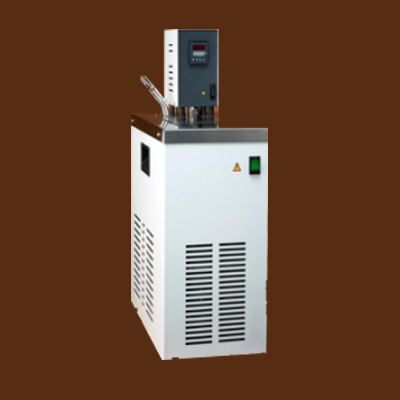

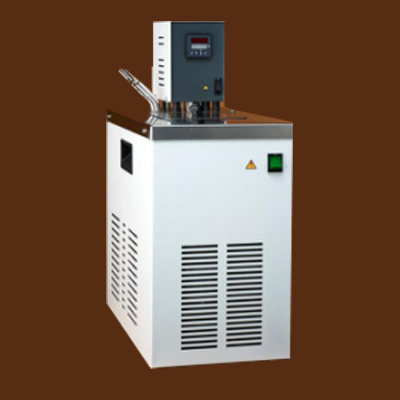

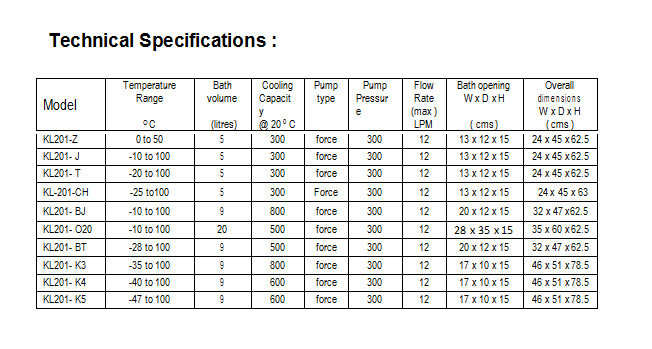

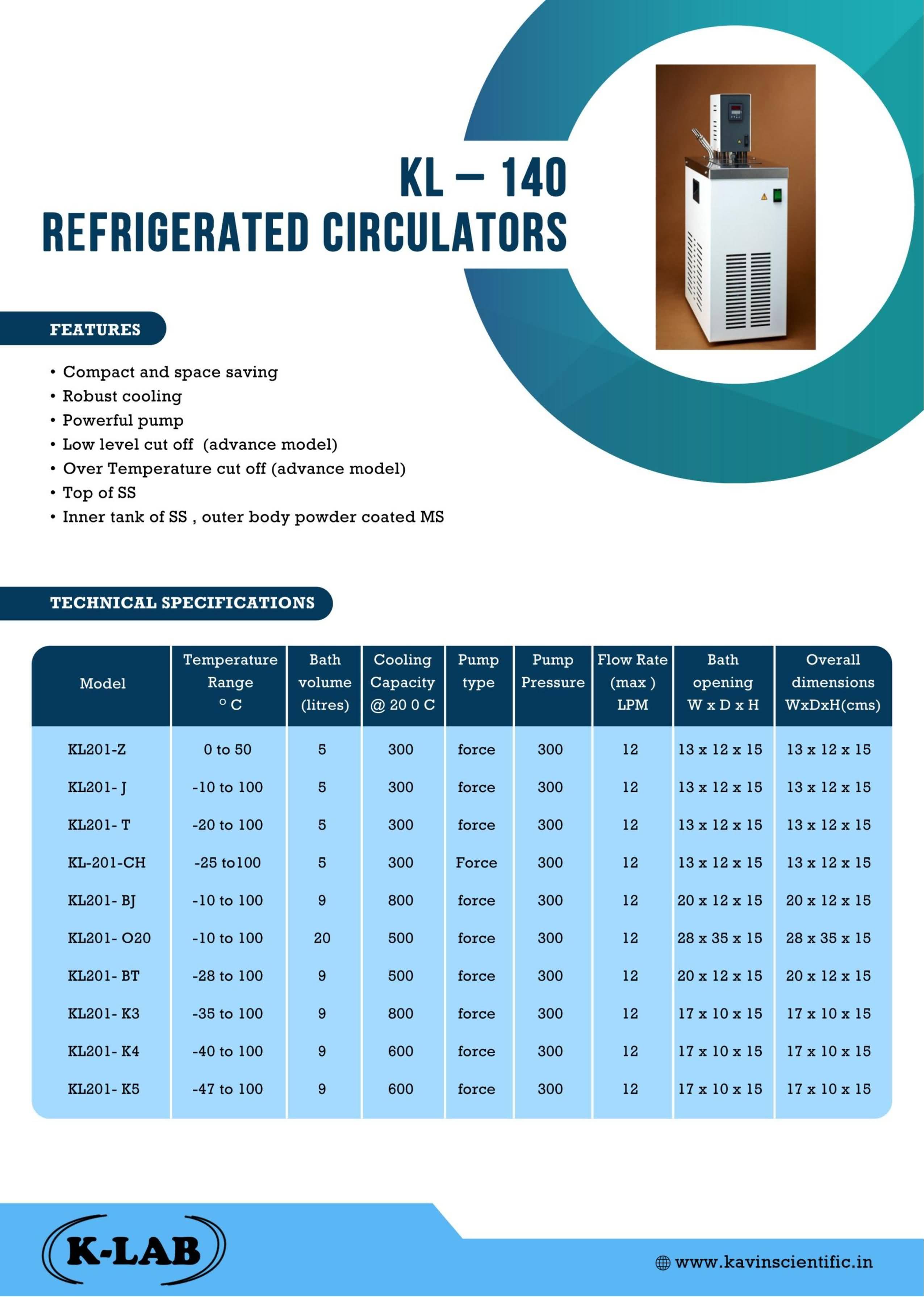

KL – 140 - Refrigerated Circulators

Features:

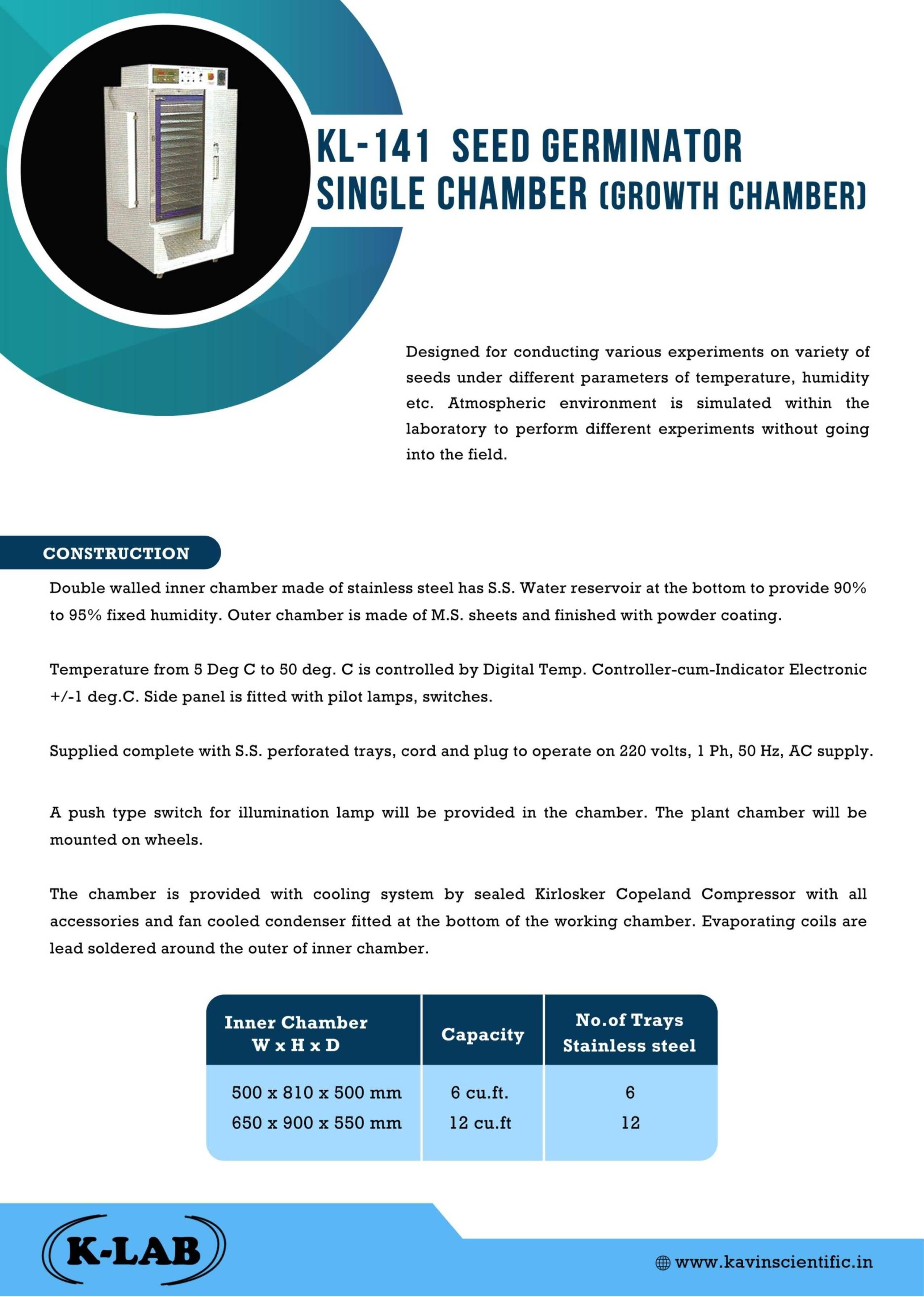

KL-141 SEED GERMINATOR – SINGLE CHAMBER (GROWTH CHAMBER)

Designed for conducting various experiments on variety of seeds under different parameters of temperature, humidity etc. Atmospheric environment is simulated within the laboratory to perform different experiments without going into the field.
Construction: Double walled inner chamber made of stainless steel has S.S. Water reservoir at the bottom to provide 90% to 95% fixed humidity. Outer chamber is made of M.S. sheets and finished with powder coating. Temperature from 5 Deg C to 50 deg. C is controlled by Digital Temp. Controller-cum-Indicator Electronic +/-1 deg.C. Side panel is fitted with pilot lamps, switches. Supplied complete with S.S. perforated trays, cord and plug to operate on 220 volts, 1 Ph, 50 Hz, AC supply.
A push type switch for illumination lamp will be provided in the chamber. The plant chamber will be mounted on wheels. The chamber is provided with cooling system by sealed Kirlosker Copeland Compressor with all accessories and fan cooled condenser fitted at the bottom of the working chamber. Evaporating coils are lead soldered around the outer of inner chamber.

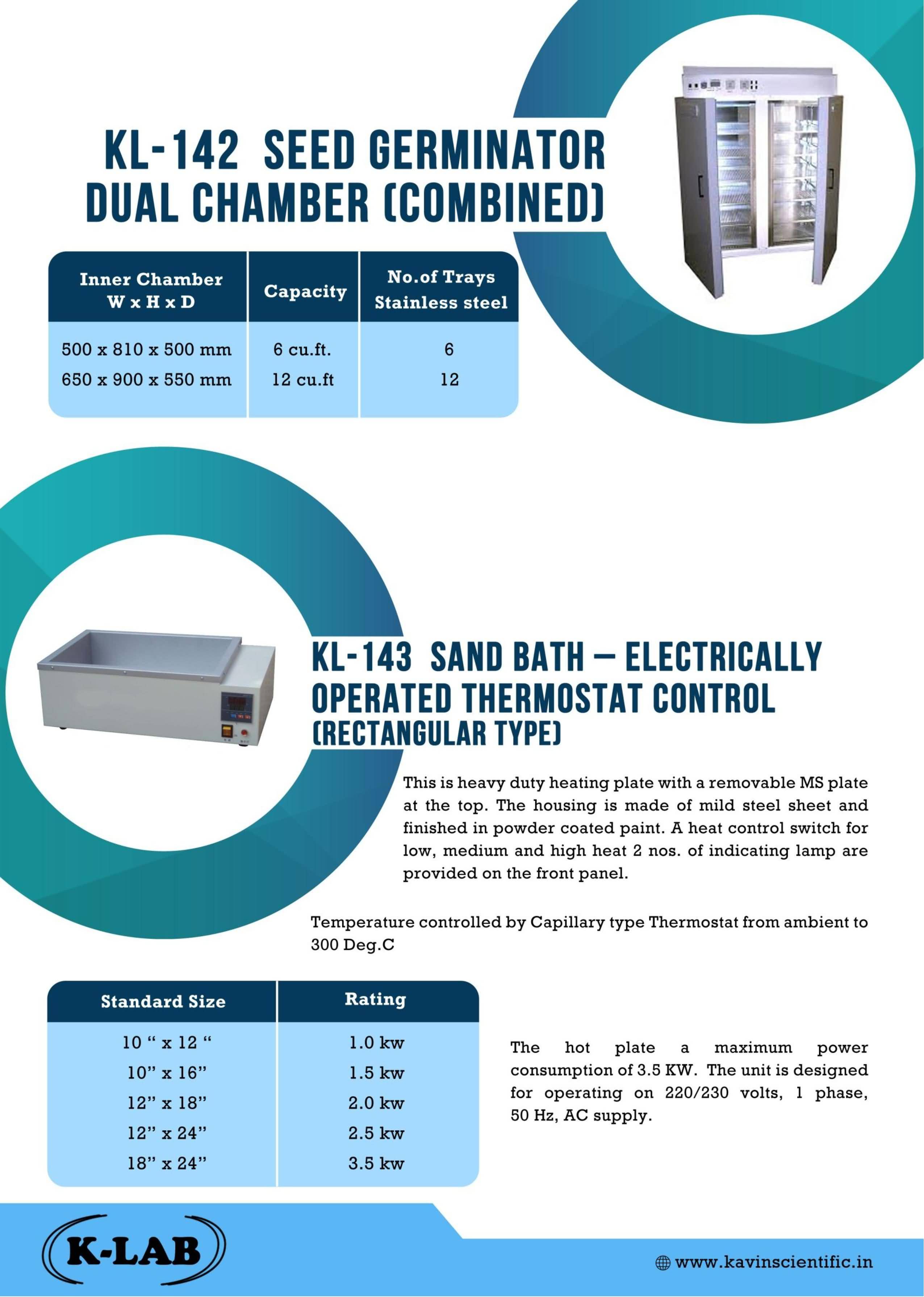

KL-142 SEED GERMINATOR – DUAL CHAMBER (Combined)

KL-143 SAND BATH – ELECTRICALLY OPERATED THERMOSTAT CONTROL (RECTANGULAR TYPE)

This is heavy duty heating plate with a removable MS plate at the top. The housing is made of mild steel sheet and finished in powder coated paint. A heat control switch for low, medium and high heat 2 nos. of indicating lamp are provided on the front panel.
Temperature controlled by Capillary type Thermostat from ambient to 300 Deg.C
The hot plate a maximum power consumption of 3.5 KW. The unit is designed for operating on 220/230 volts, 1 phase, 50 Hz, AC supply.

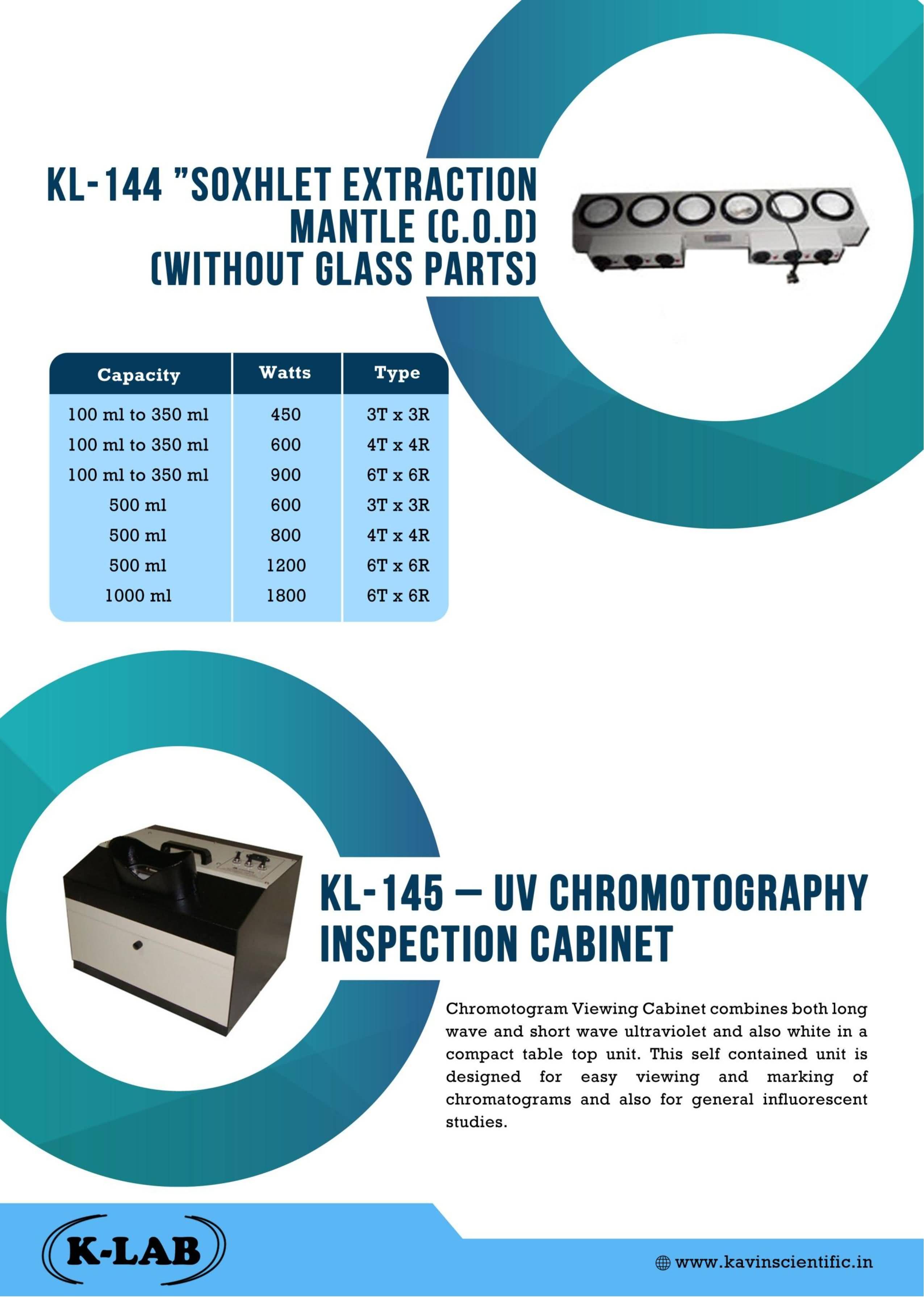

KL-144 ”SOXHLET EXTRACTION MANTLE (C.O.D) (WITHOUT GLASS PARTS)

KL-145 – UV CHROMOTOGRAPHY INSPECTION CABINET

Chromotogram Viewing Cabinet combines both long wave and short wave ultravioletand also white in a compact table top unit. This self contained unit is designed for easy viewing And marking of chromatograms and also for general influorescent studies

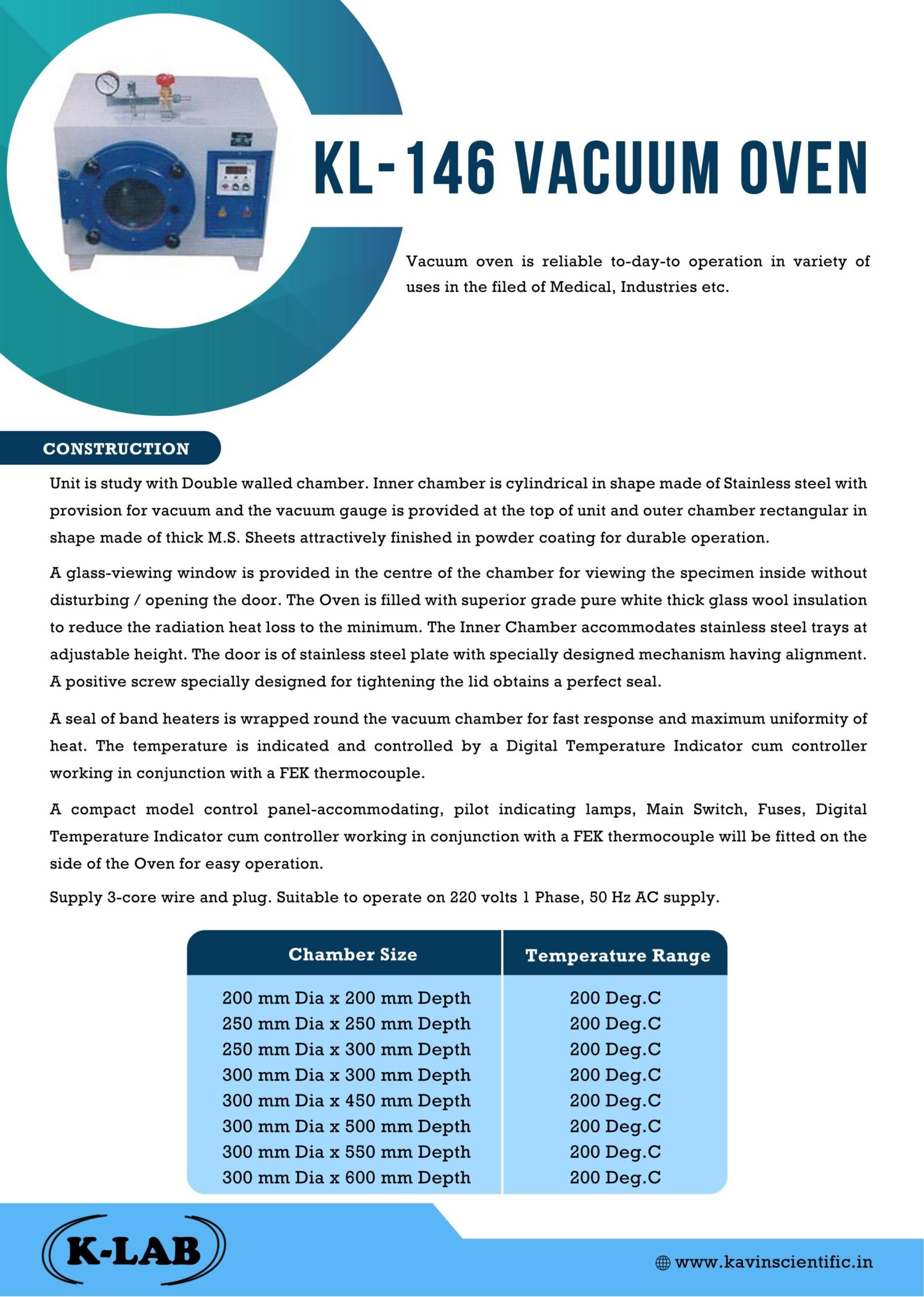

KL-146 VACUUM OVEN

Vacuum oven is reliable to-day-to operation in variety of uses in the filed of Medical, Industries etc.
CONSTRUCTION: Unit is study with Double walled chamber. Inner chamber is cylindrical in shape made of Stainless steel with provision for vacuum and the vacuum gauge is provided at the top of unit and outer chamber rectangular in shape made of thick M.S. Sheets attractively finished in powder coating for durable operation.
A glass-viewing window is provided in the centre of the chamber for viewing the specimen inside without disturbing / opening the door. The Oven is filled with superior grade pure white thick glass wool insulation to reduce the radiation heat loss to the minimum. The Inner Chamber accommodates stainless steel trays at adjustable height. The door is of stainless steel plate with specially designed mechanism having alignment. A positive screw specially designed for tightening the lid obtains a perfect seal.
A seal of band heaters is wrapped round the vacuum chamber for fast response and maximum uniformity of heat. The temperature is indicated and controlled by a Digital Temperature Indicator cum controller working in conjunction with a FEK thermocouple.
A compact model control panel-accommodating, pilot indicating lamps, Main Switch, Fuses, Digital Temperature Indicator cum controller working in conjunction with a FEK thermocouple will be fitted on the side of the Oven for easy operation.
Supply 3-core wire and plug. Suitable to operate on 220 volts 1 Phase, 50 Hz AC supply.

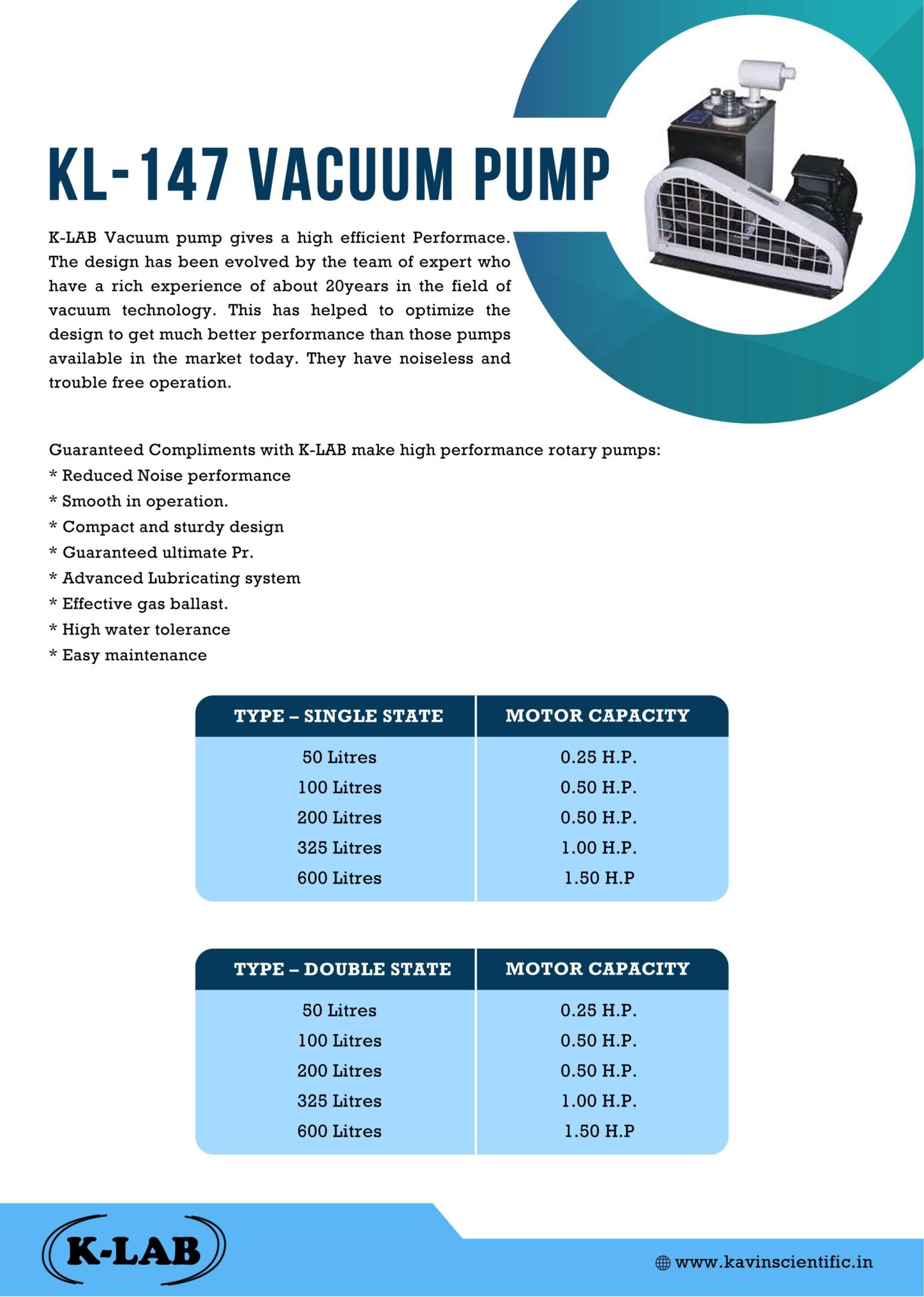

KL-147 VACUUM PUMP

K-LAB Vacuum pump gives a high efficient Performace. The design has been evolved by the team of expert who have a rich experience of about 20years in the field of vacuum technology. This has helped to optimize the design to get much better performance than those pumps available in the market today. They have noiseless and trouble free operation.
Guaranteed Compliments with K-LAB make high performance rotary pumps:
Reduced Noise performance.
Smooth in operation.
Compact and sturdy design
Guaranteed ultimate Pr.
Advanced Lubricating system
Effective gas ballast.
High water tolerance
Easy maintenance

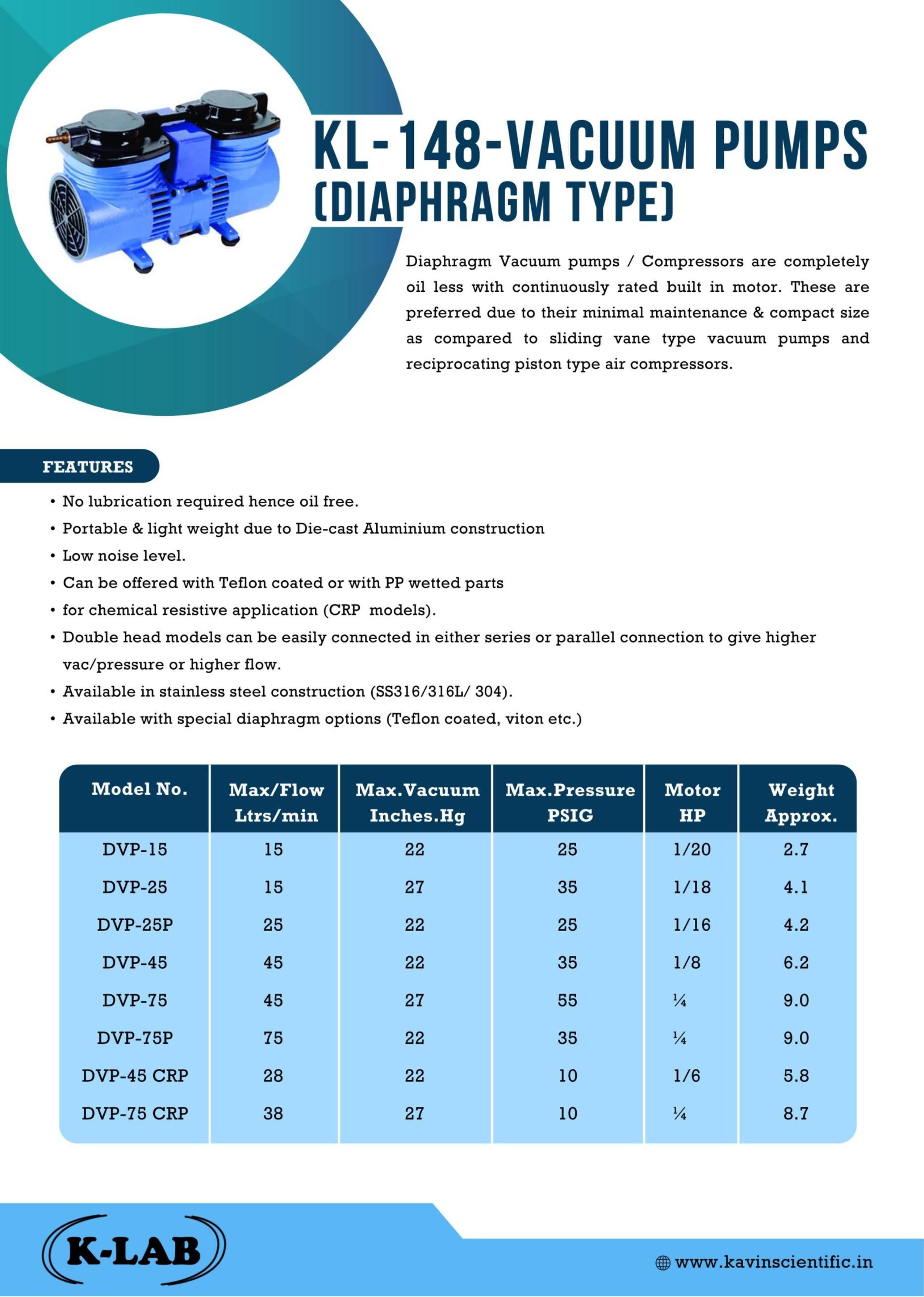

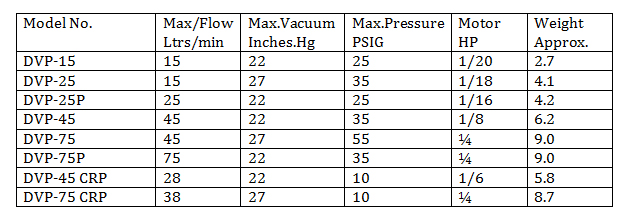

KL-148 - Vacuum Pumps: (Diaphragm Type)

Diaphragm Vacuum pumps / Compressors are completely oil less with continuously rated built in motor. These are preferred due to their minimal maintenance & compact size as compared to sliding vane type vacuum pumps&reciprocating piston type air compressors.
Features:
No lubrication required hence oil free.
Portable & light weight due to Die-cast Aluminium construction
Low noise level.
Can be offered with Teflon coated or with PP wetted parts
for chemical resistive application (CRP models).
Double head models can be easily connected in either series or parallel connection to give higher vac/pressure or higher flow.
Available in stainless steel construction (SS316/316L/ 304).
Available with special diaphragm options (Teflon coated, viton etc.)

KL-149 – V.R.R.L. ROTATOR WITH TIMER

The rotorhas a rubber covered metal platform of size 300x 300mm which can take cavity slides blood bottle and flask by using spring bottle holder. It runs at fixed rpm and an imported timer is fittedto control the shaking duration. Supplied complete with cord and Plug to operate on 230V

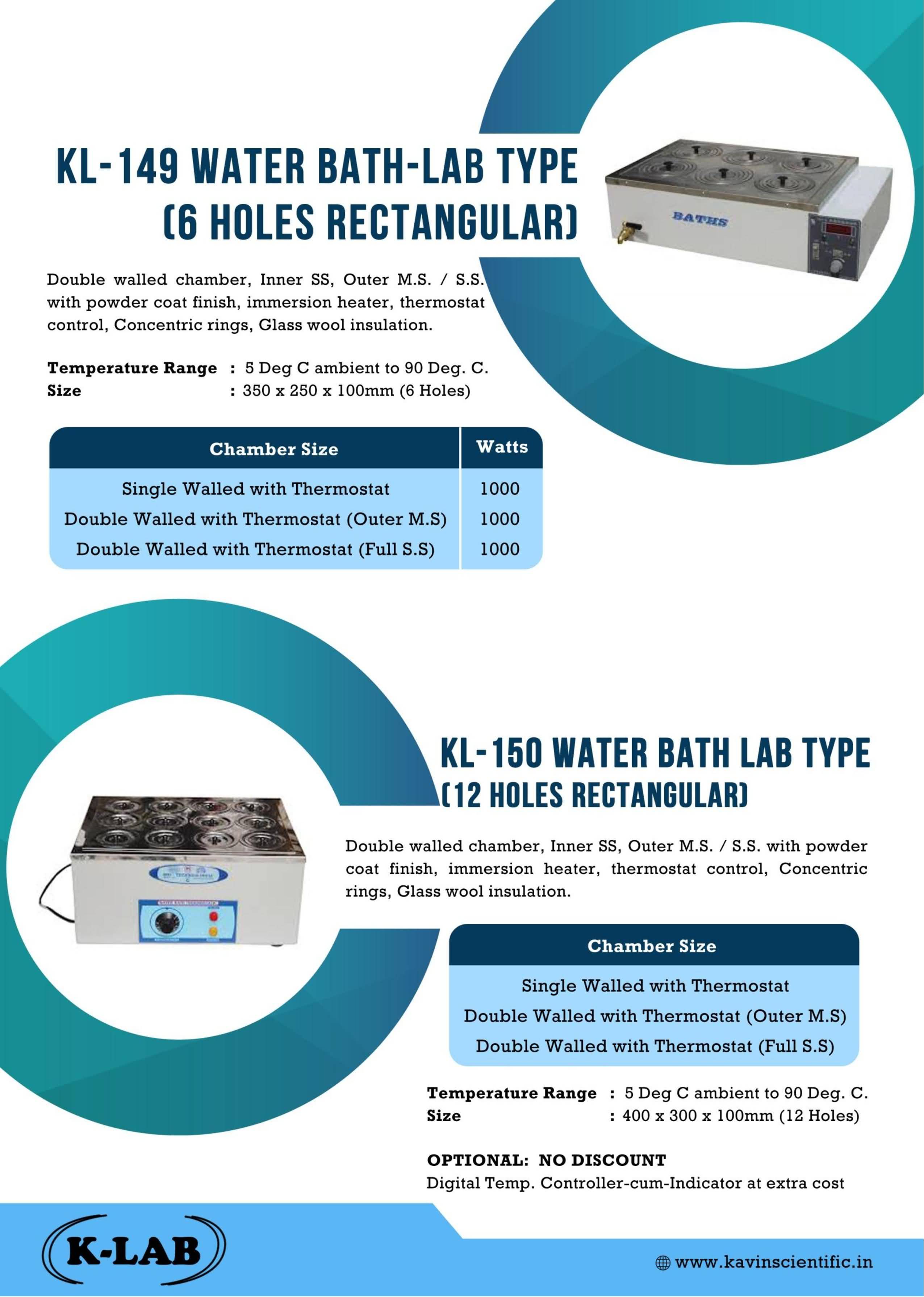

KL-149 WATER BATH – LAB TYPE (6 Holes Rectangular)

Double walled chamber, Inner SS, Outer M.S. / S.S. with powder coat finish, immersion heater, thermostat control, Concentric rings, Glass wool insulation.
Temperature Range: 5 Deg C ambient to 90 Deg. C.
Size: 350 x 250 x 100mm (6 Holes)

KL-150 WATER BATH – LAB TYPE (12 Holes Rectangular)

Double walled chamber, Inner SS, Outer M.S. / S.S. with powder coat finish, immersion heater, thermostat control, Concentric rings, Glass wool insulation.
Temperature Range: 5 Deg C ambient to 90 Deg. C.
Size: 400 x 300 x 100mm (12 Holes)

KL-151 WATER BATH – (DYE POTS)

Double walled with Inner chamber S.S. and Thermostatically controlled. Supplied with S.S. Dye Pots.

KL-152 WATER BATH – (SEROLOGICAL)

Serological Water baths are versatile enough to handle any clinical procedure, Incubation, Inactivation, Agglutination, as well as most serological pharmaceutical, biomedical procedure.
CONSTRUCTION: Double wall construction. Complete inner chamber made of HIGHLY POLISHED STAINLESS STEEL. Outer Chamber is made of Mild Steel Sheet, finished with power coating. Gap between the walls is filled with special grade glass wool for proper insulation to avoid heat losses.
The Water Bath is provided with a drain plug to facilitate easy emptying and cleaning of the inner chamber whenever necessary. Pyramidal shaped cover and perforated removable diffuser are standard accessories.
HEATING ELEMENTS: Immersion heating elements made of high grade materials are fitted at bottom with different rating for different sizes.
TEMPERATURE CONTROL: Temperature is generally controlled by Capillary thermostat from 5 deg. ambient to 90 deg.C +/- 1 deg.C.
CONTROL PANEL: The equipment is provided with a panel having a thermostat. ON/OFF switch, two pilot lamps. Supplied with cord and plug.
POWER: Suitable to operate on 220V, Single Phase, 50 Hz, AC supply.

KL-153 WATER BATH SHAKER

Double walled chamber, inner chamber made of stainless steel and outer fabricated out of cold rolled mild steel sheets duly finished in attractive powder coat point. The pyramid-cal lid is also made of stainless steel prevents falling of condensed water droplets on the specimens, the inner space between the two walls is tightly packed with special grade glass wool in order to prevent thermal losses.
Heating is achieved by immersion type heater and the temperature is controlled by hydraulic type thermostat within the operating range from Ambient +5 Deg.C to 95°C.
The bath is provided with an oscillating tray riding on ball rollers oscillated through a gear variable speed motor. Shaking speed range is between 40 to 140 cycles per minutes. The shaking tray can either hold test tubes or conical flasks of 25 ml to 1000 ml as ordered by the users. Supplied complete with one shaking tray and cord and plug. Designed to work on 220 / 230 volts AC.
Temp. Range: Ambient + 5 Deg.C to 90 Deg.C

KL-152 WATER BATH – (SEROLOGICAL)

Serological Water baths are versatile enough to handle any clinical procedure, Incubation, Inactivation, Agglutination, as well as most serological pharmaceutical, biomedical procedure.
CONSTRUCTION: Double wall construction. Complete inner chamber made of HIGHLY POLISHED STAINLESS STEEL. Outer Chamber is made of Mild Steel Sheet, finished with power coating. Gap between the walls is filled with special grade glass wool for proper insulation to avoid heat losses.
The Water Bath is provided with a drain plug to facilitate easy emptying and cleaning of the inner chamber whenever necessary. Pyramidal shaped cover and perforated removable diffuser are standard accessories.
HEATING ELEMENTS: Immersion heating elements made of high grade materials are fitted at bottom with different rating for different sizes.
TEMPERATURE CONTROL: Temperature is generally controlled by Capillary thermostat from 5 deg. ambient to 90 deg.C +/- 1 deg.C.
CONTROL PANEL: The equipment is provided with a panel having a thermostat. ON/OFF switch, two pilot lamps. Supplied with cord and plug.
POWER: Suitable to operate on 220V, Single Phase, 50 Hz, AC supply.

KL-155 – UV CHROMOTOGRAPHY INSPECTION CABINET Chromotogram Viewing Cabinet combines both long wave and short wave ultravioletand also white in a compact table top unit. This self contained unit is designed for easy viewing And marking of chromatograms and also for general influorescent studies
